Luggage Speaker: Components: Illustration

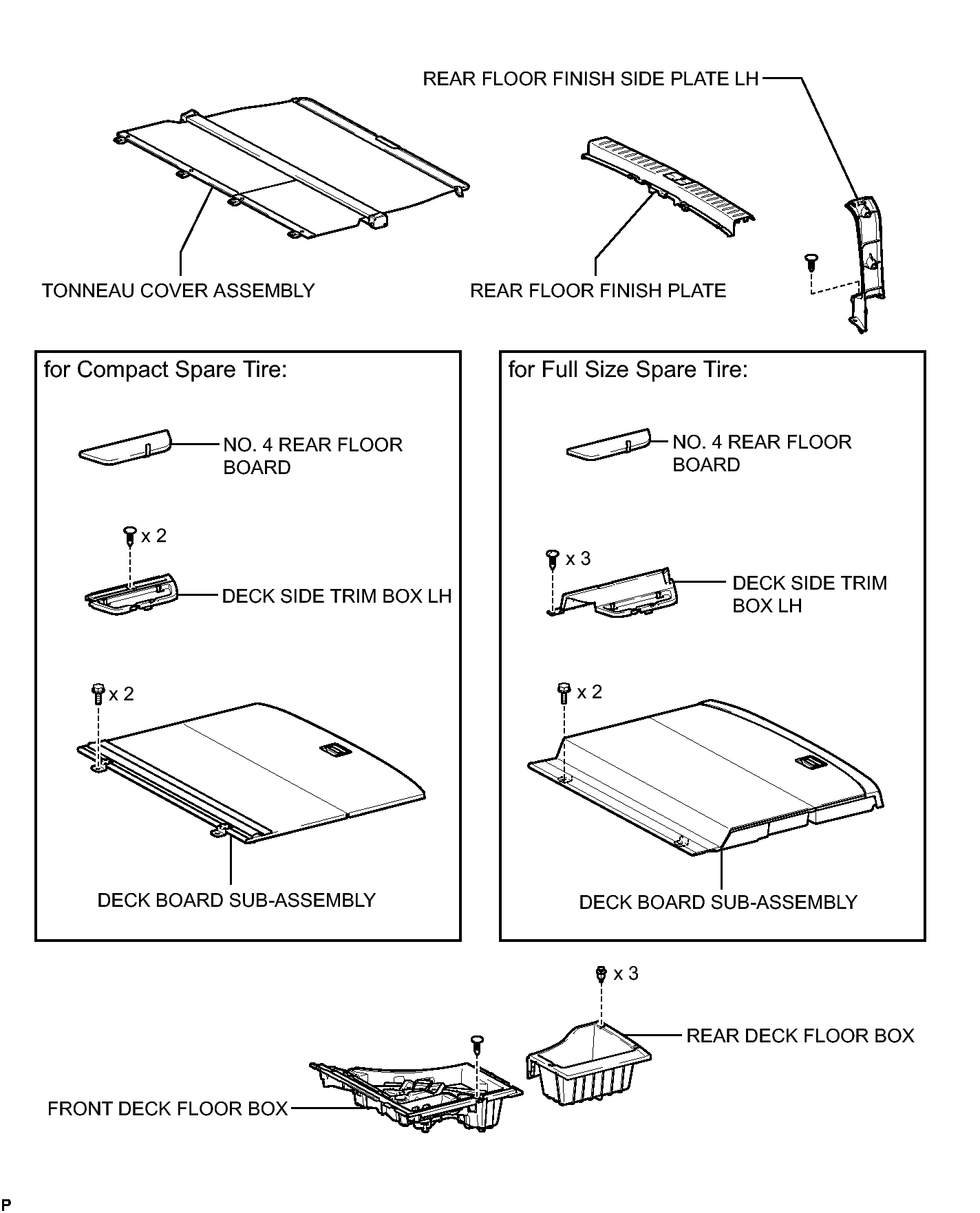

Fig 1: Identifying Luggage Speaker Replacement Components (1 of 3)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 1: Identifying Luggage Speaker Replacement Components (2 Of 3)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

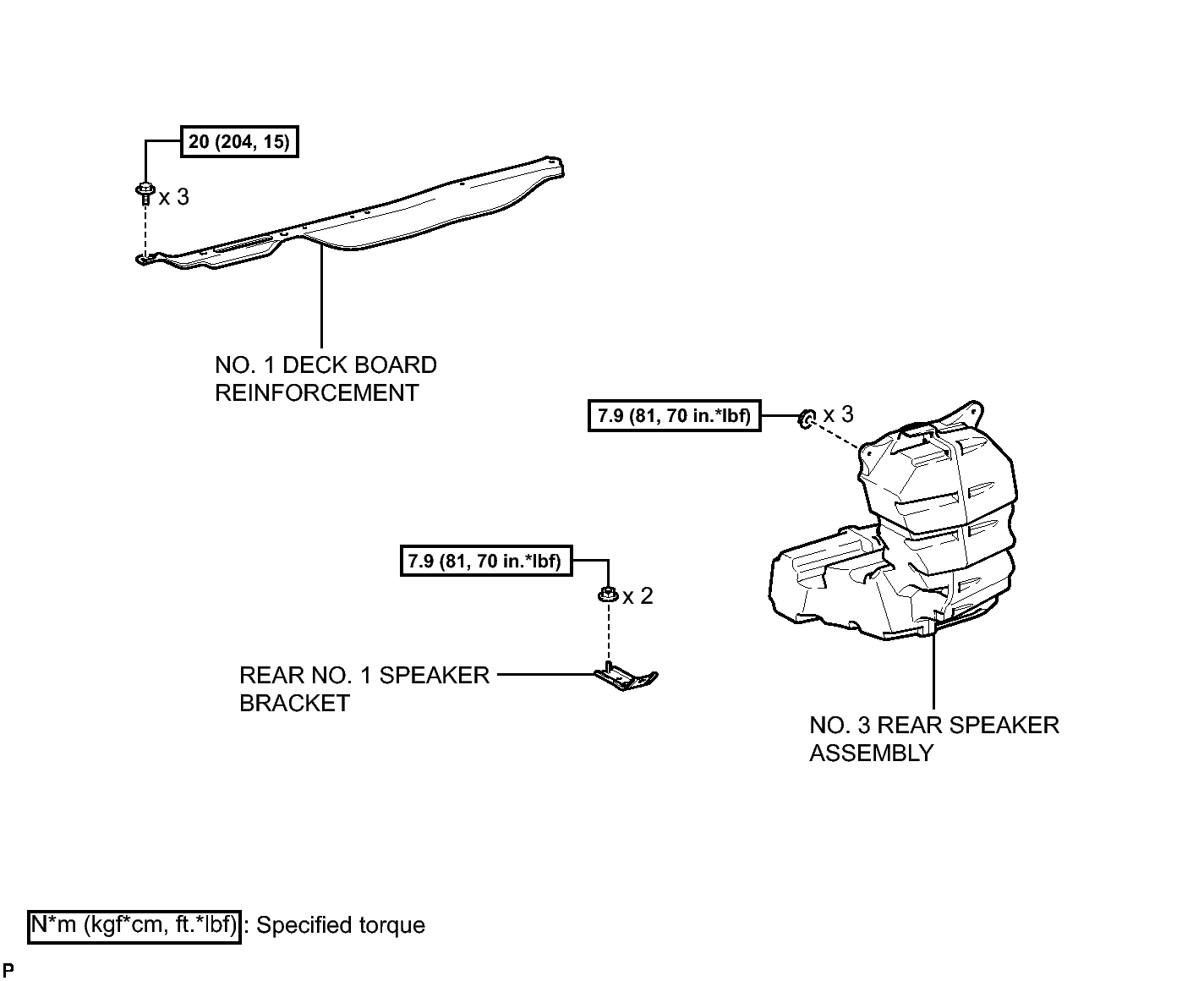

Fig 1: Identifying Luggage Speaker Replacement Components (3 of 3) With Torque Specifications

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
