Parts Location: Illustration

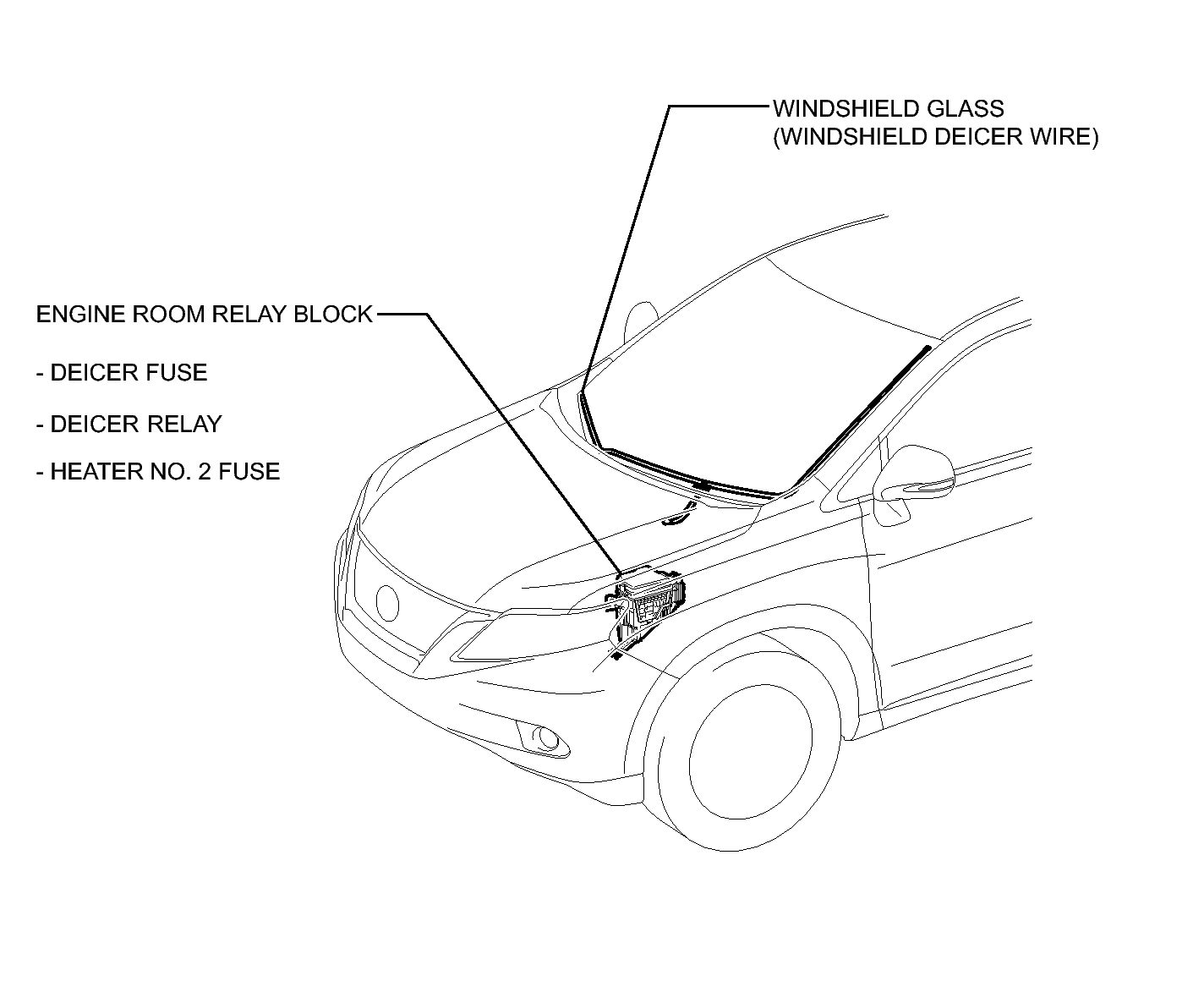

Fig 1: Identifying Windshield Deicer System Components Location (1 Of 2)
GTY278672Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

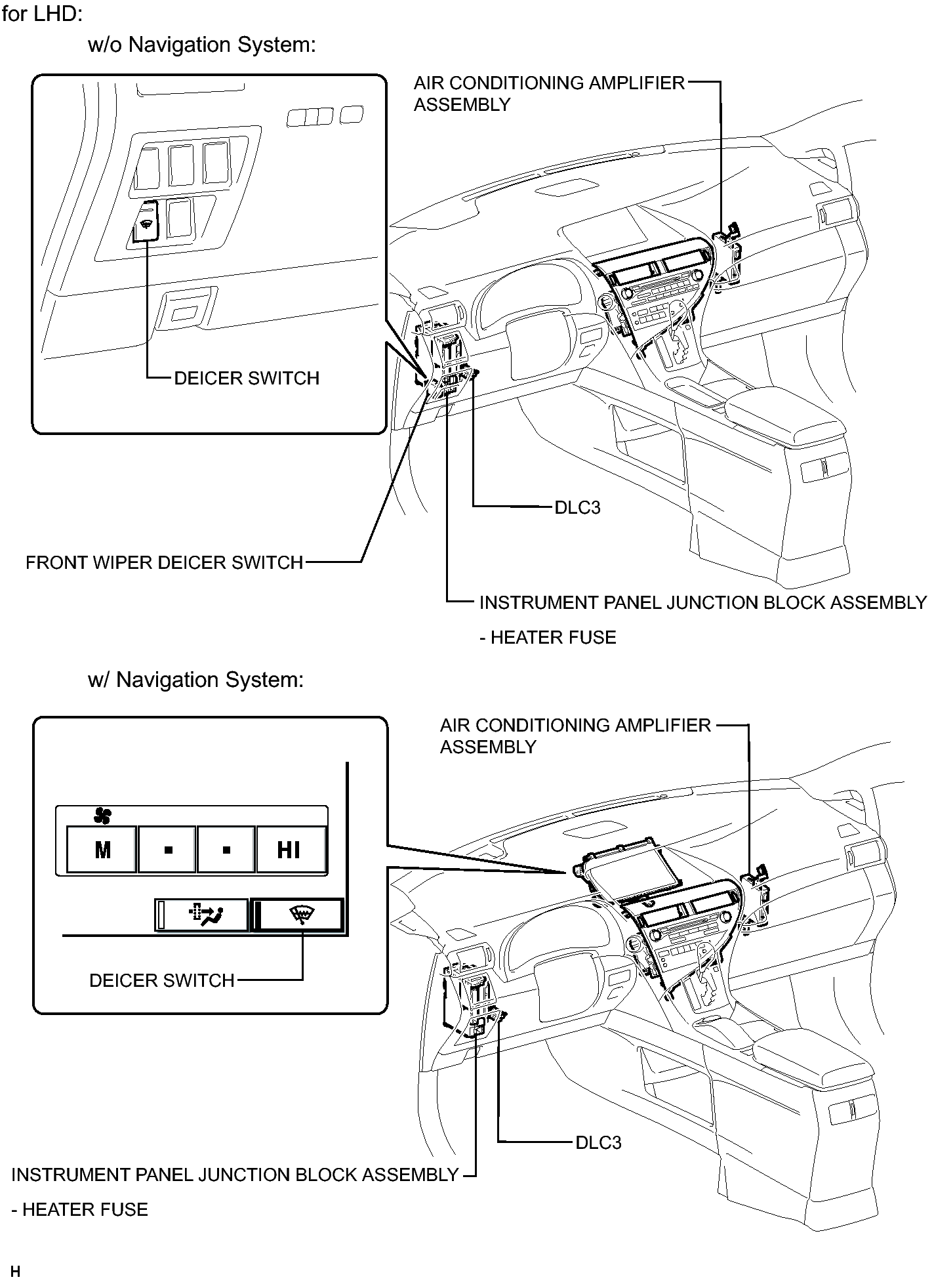

Fig 1: Identifying Windshield Deicer System Components Location (2 Of 2)
GTY286010Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
