Parts Location: Illustration

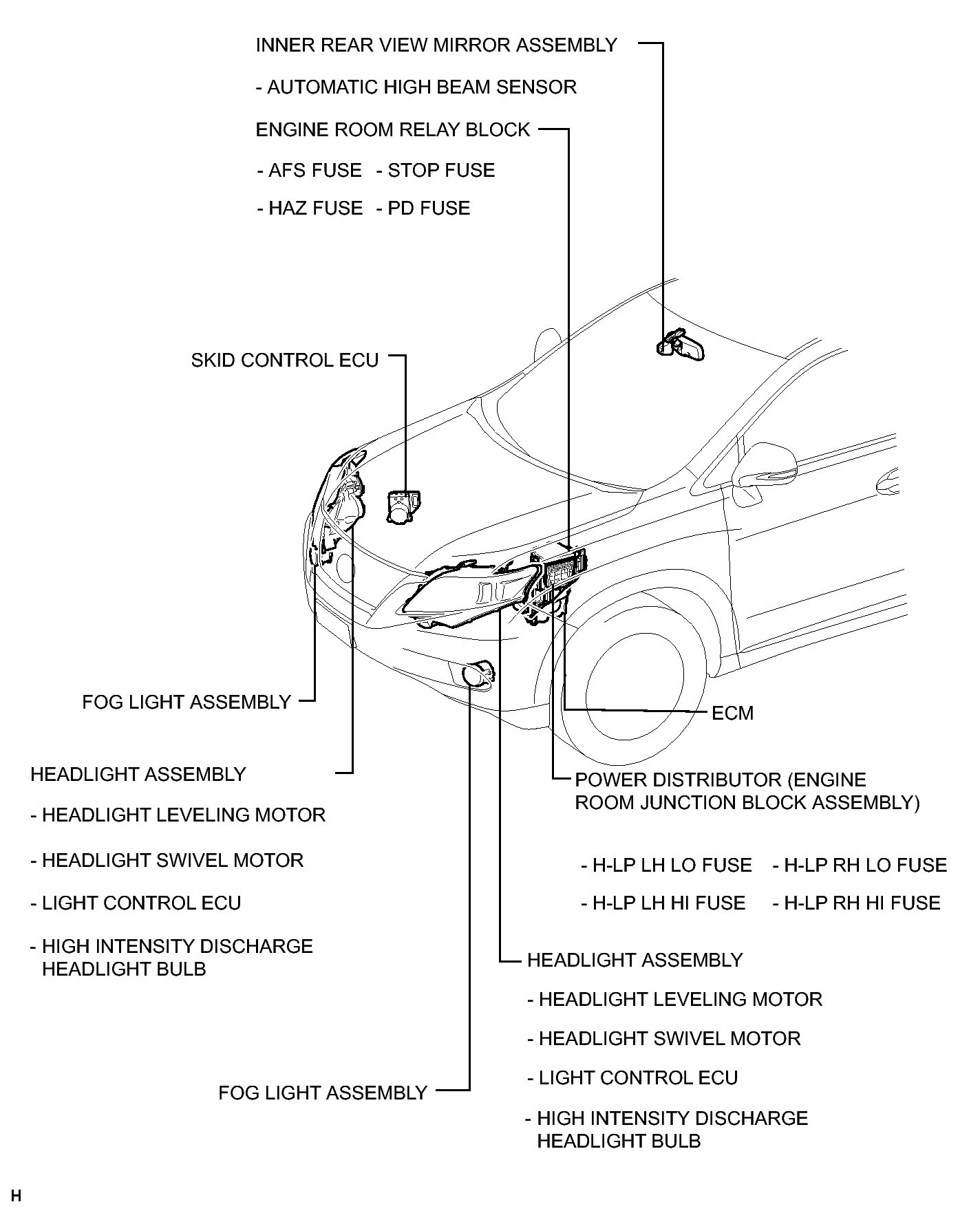

Fig 1: Identifying Lighting System Components Location (1 Of 5)
GTY282885Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

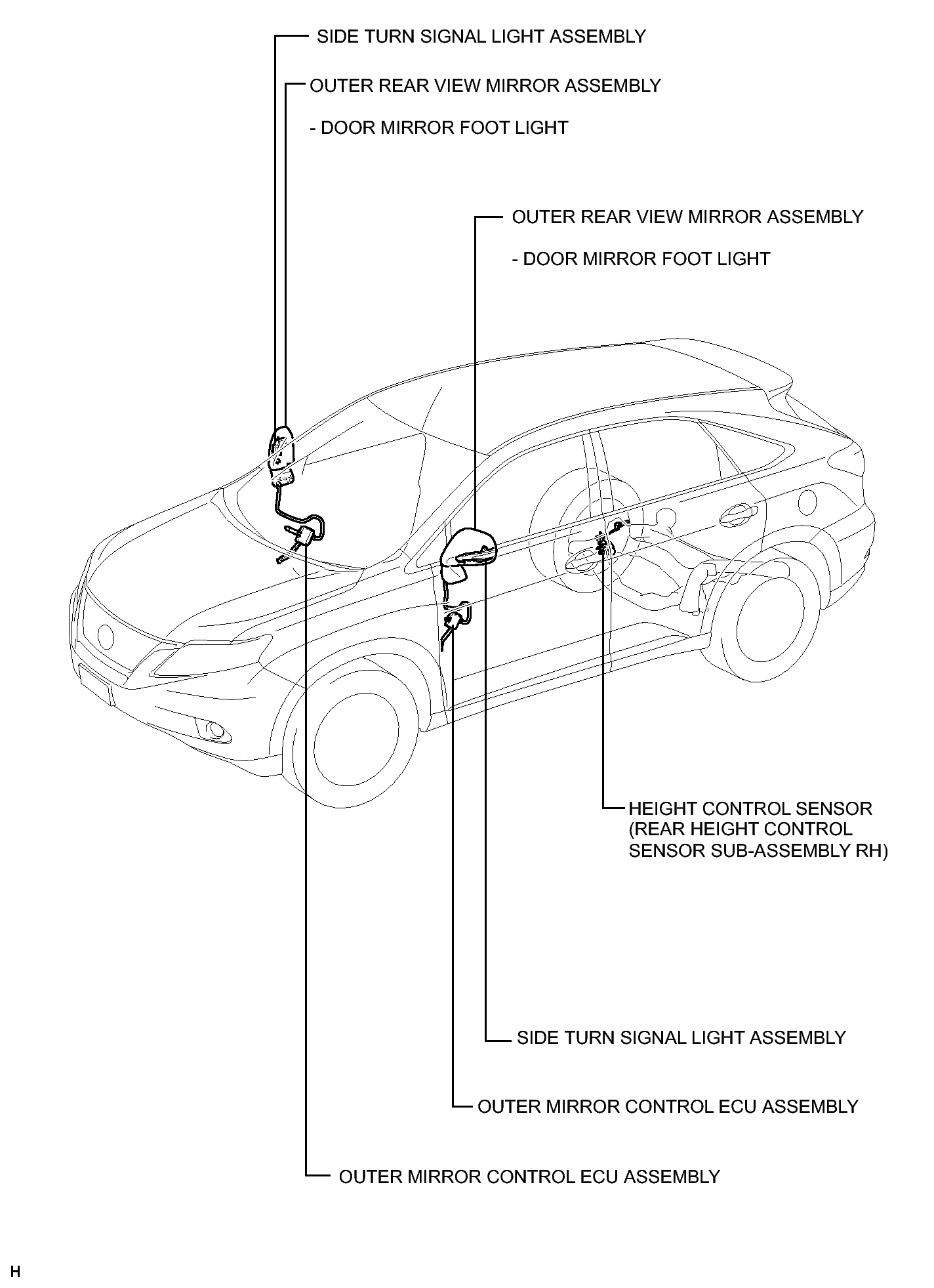

Fig 1: Identifying Lighting System Components Location (2 Of 5)
GTY351950Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

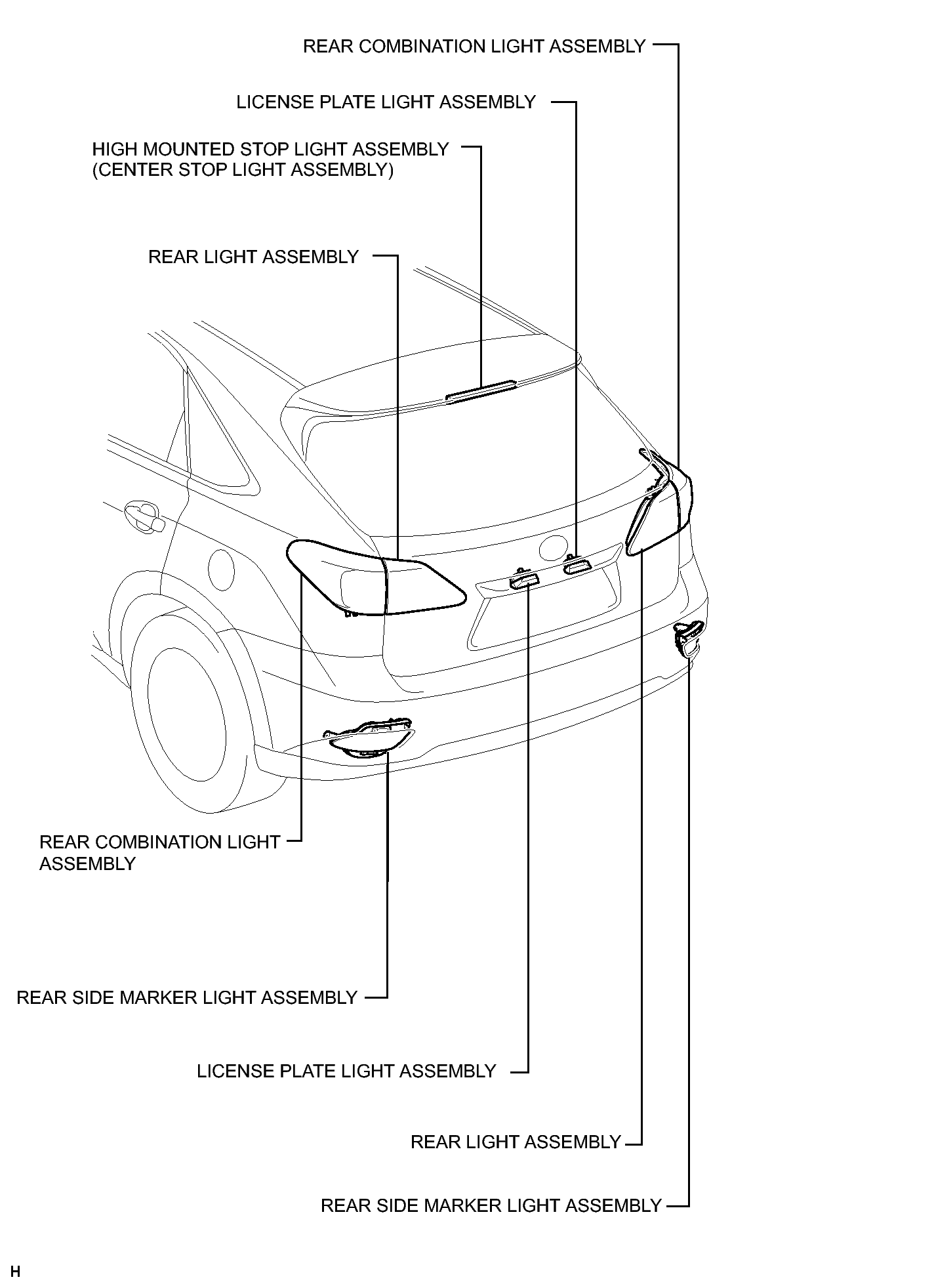

Fig 1: Identifying Lighting System Components Location (3 Of 5)
GTY269375Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

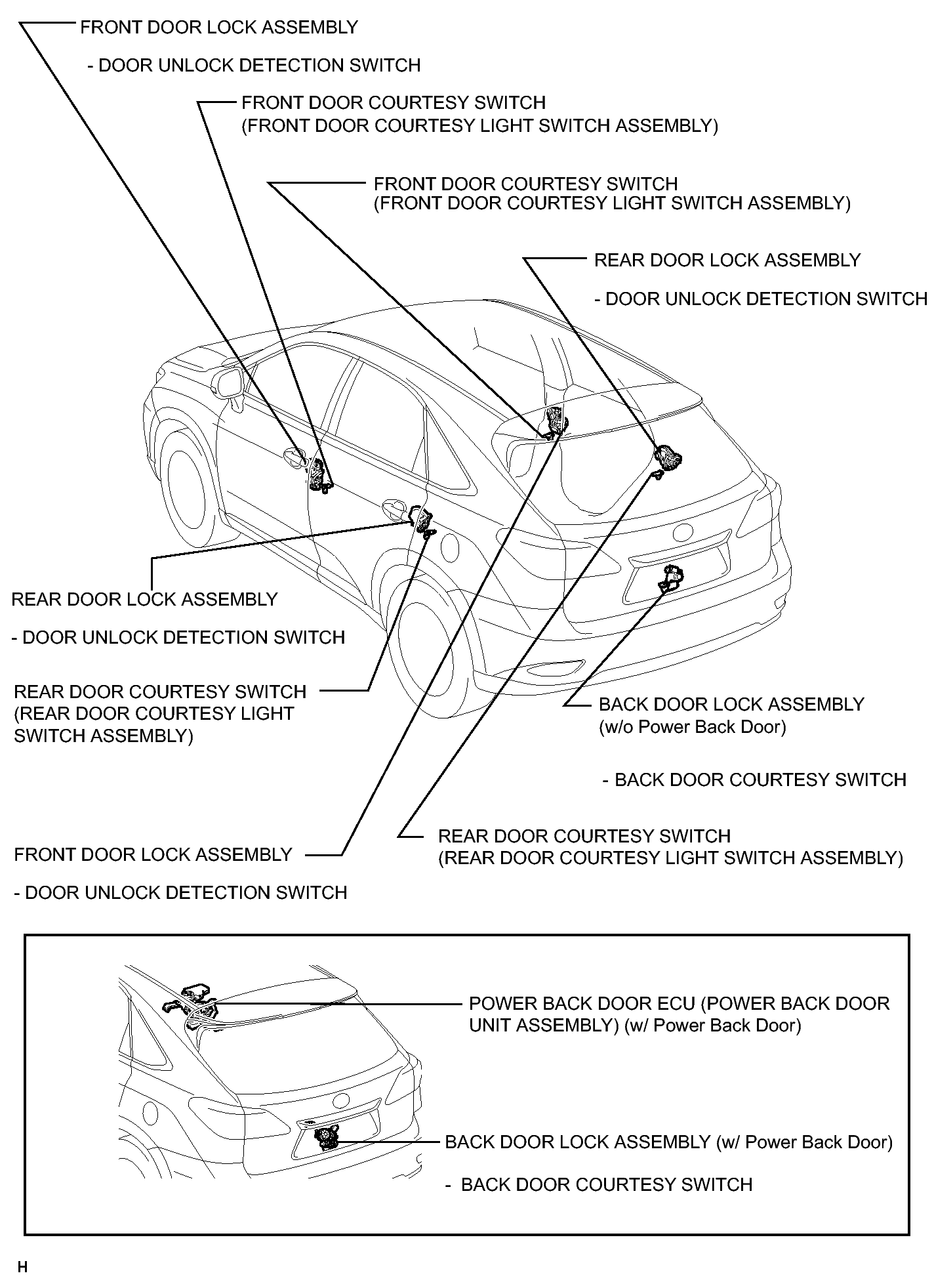

Fig 1: Identifying Lighting System Components Location (4 Of 5)
GTY358361Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

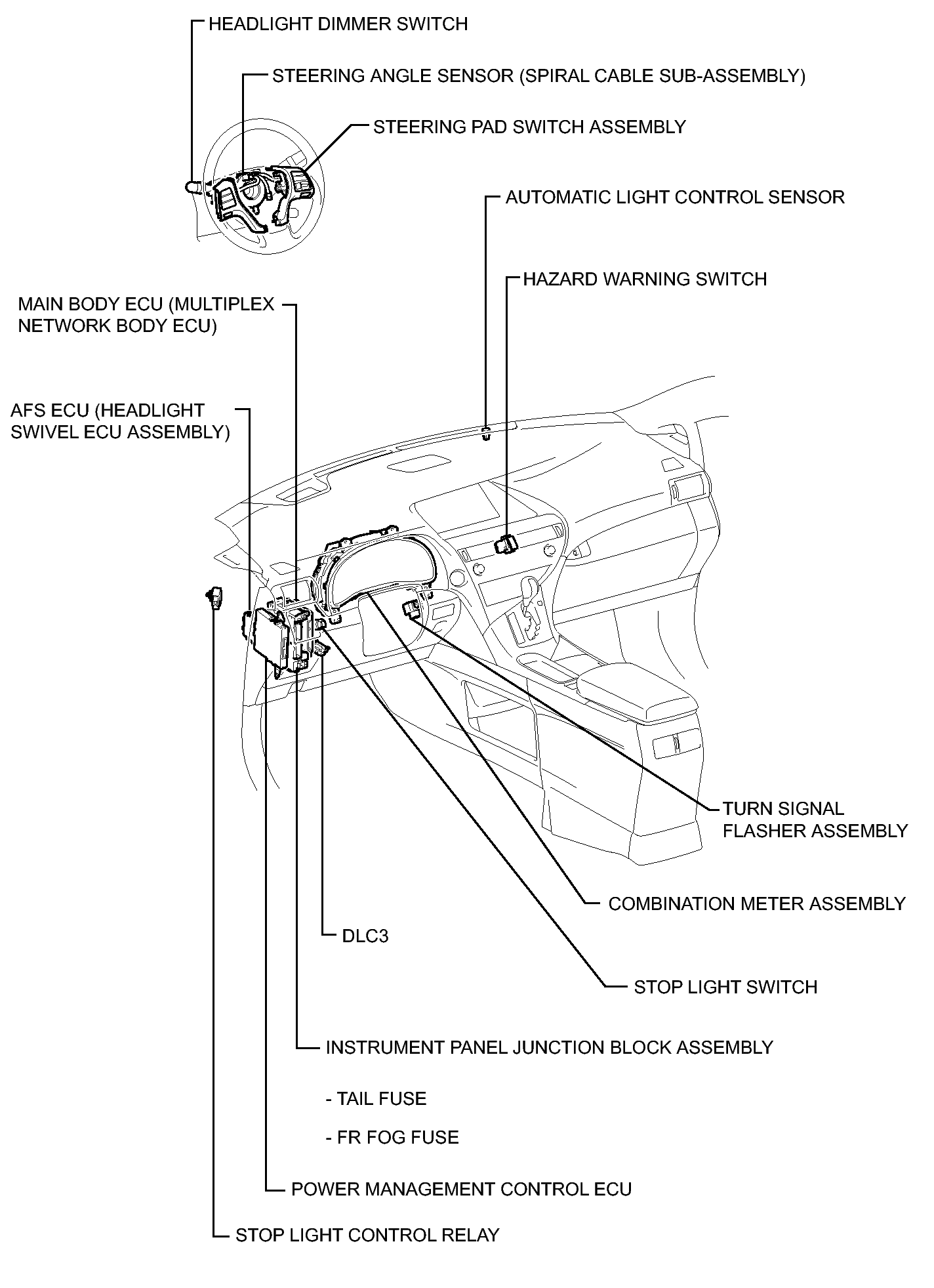

Fig 1: Identifying Lighting System Components Location (5 Of 5)
GTY284844Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
