Low Beam Headlight Circuit: Wiring Diagram

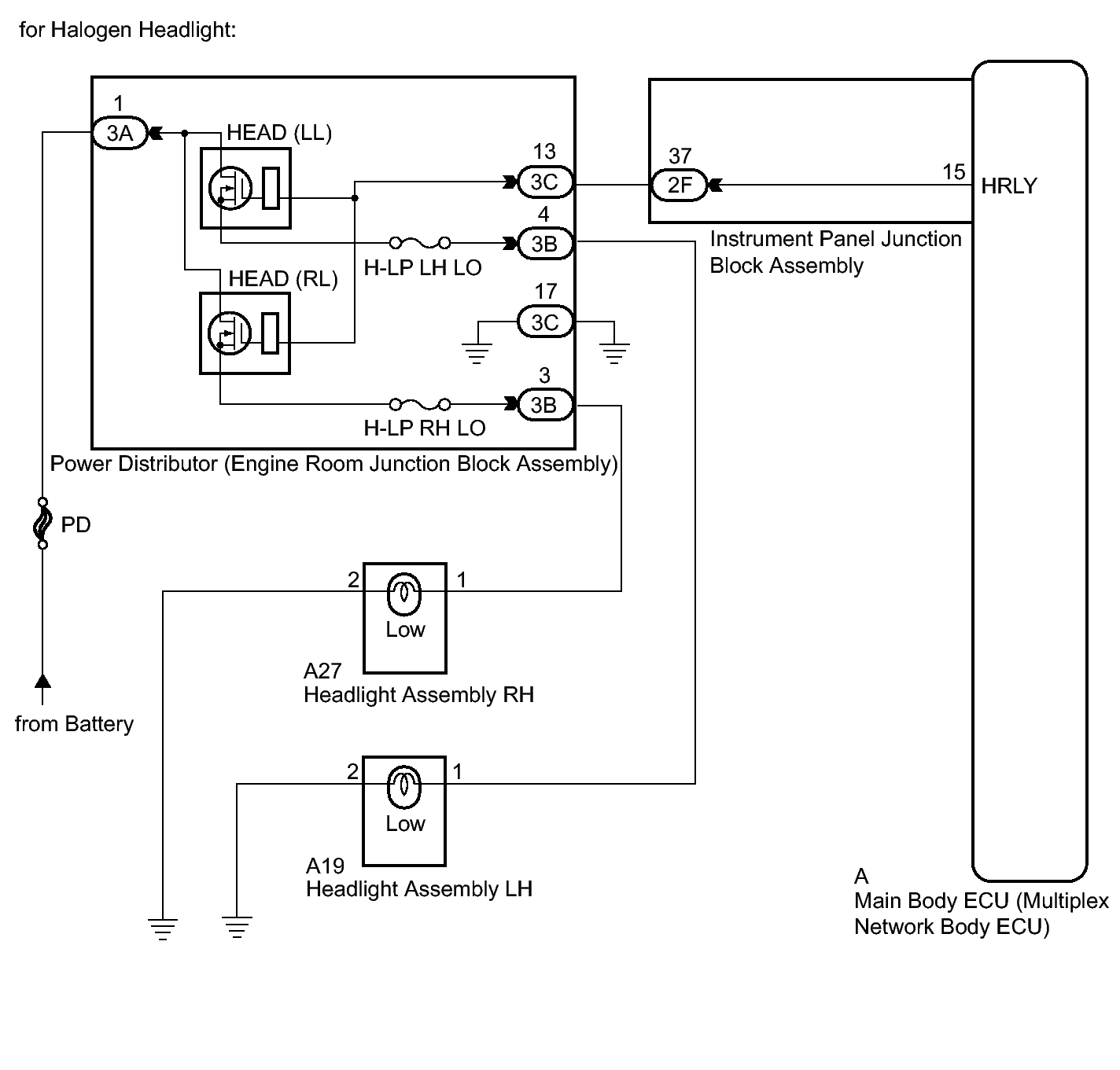

Fig 1: Identifying Low Beam Headlight Circuit Wiring Diagram (1 Of 2)
GTY351711Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

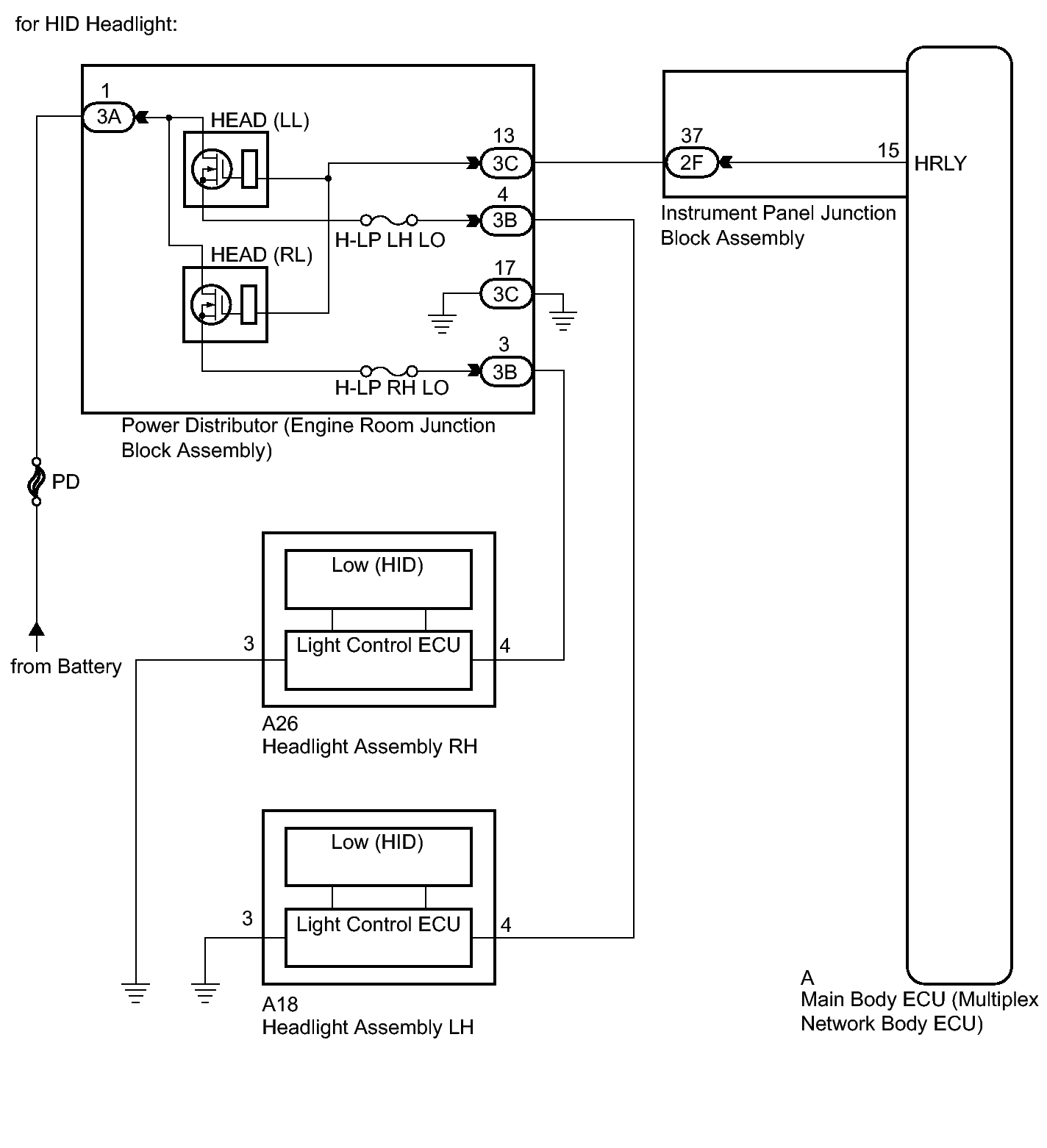

Fig 2: Identifying Low Beam Headlight Circuit Wiring Diagram (2 Of 2)
GTY354401Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
