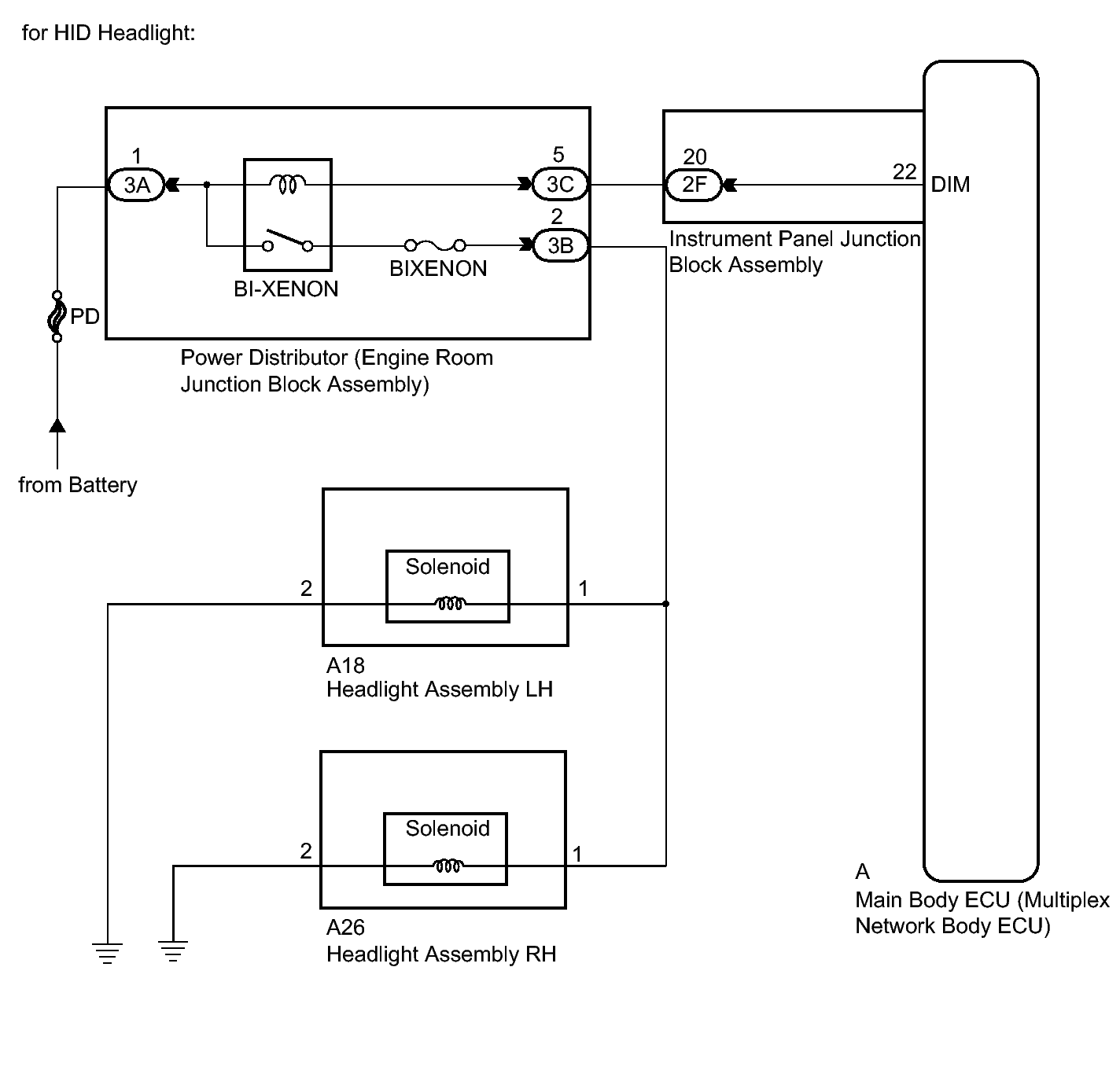

Home >> Lexus >> 2011 >> RX 350 AWD >> Repair and Diagnosis (Single Page) >> Accessories & Equipment >> Exterior Lights >> Lighting System (Exterior) (Diagnostic Codes & Circuit Tests) >> Lighting System >> Circuit Tests >> Headlight Solenoid Circuit >> Wiring Diagram
