Headlight Dimmer Switch Circuit: Wiring Diagram

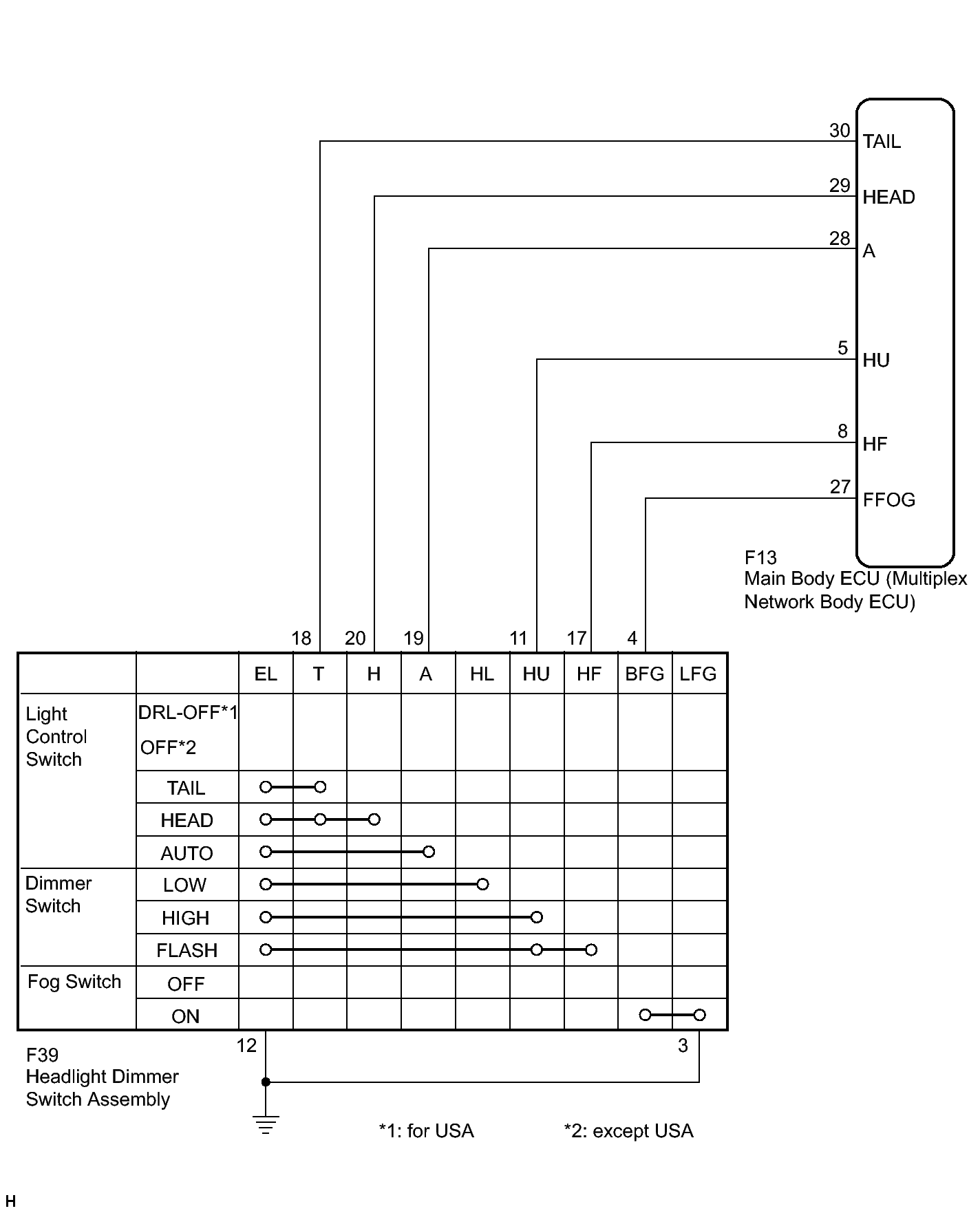

Fig 1: Identifying Headlight Dimmer Switch Circuit Wiring Diagram

GTY356154

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
