Daytime Running Light Relay Circuit: Wiring Diagram

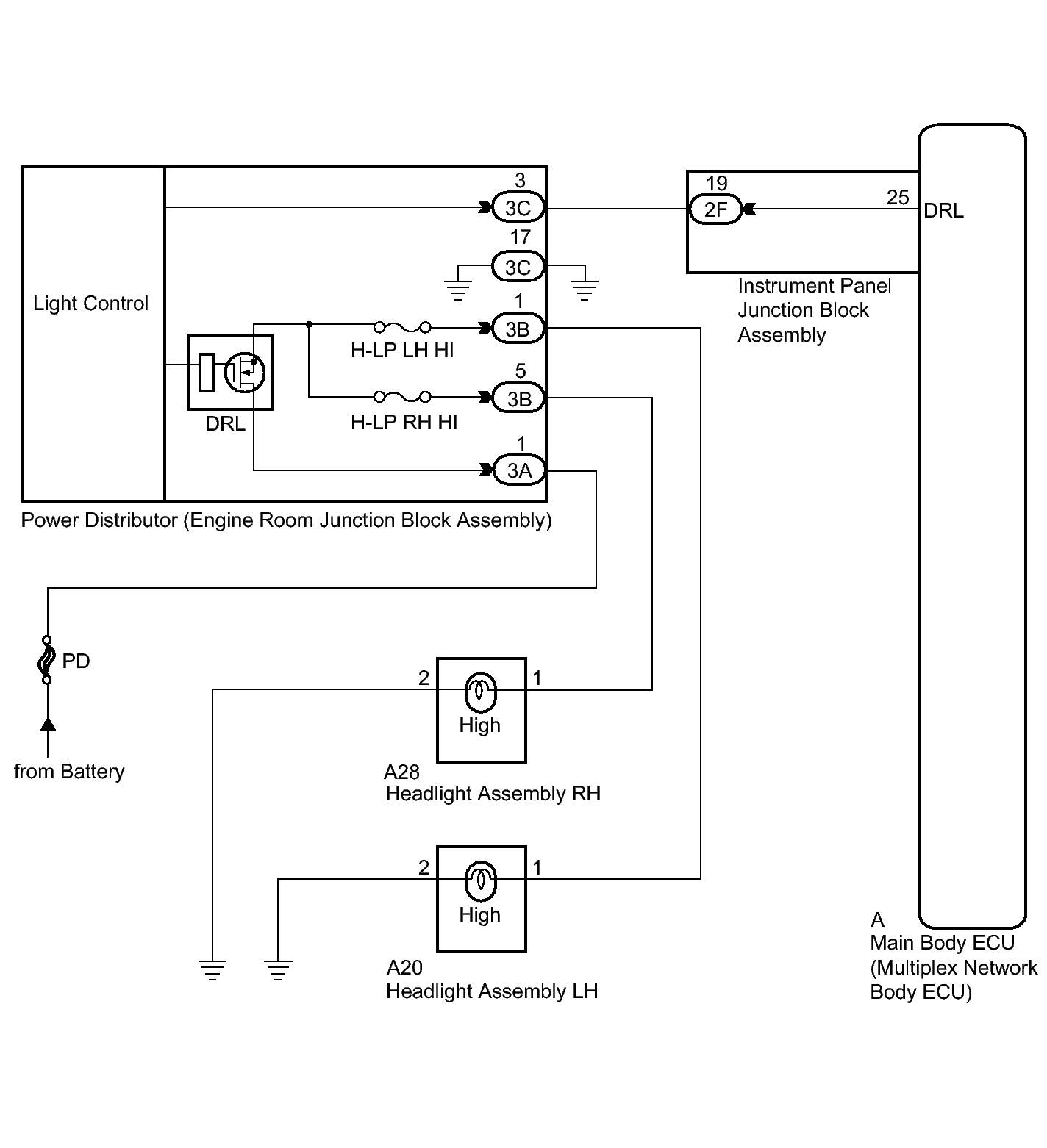

Fig 1: Identifying Daytime Running Light Relay Circuit Wiring Diagram

GTY355663

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
