Speaker Circuit: Wiring Diagram

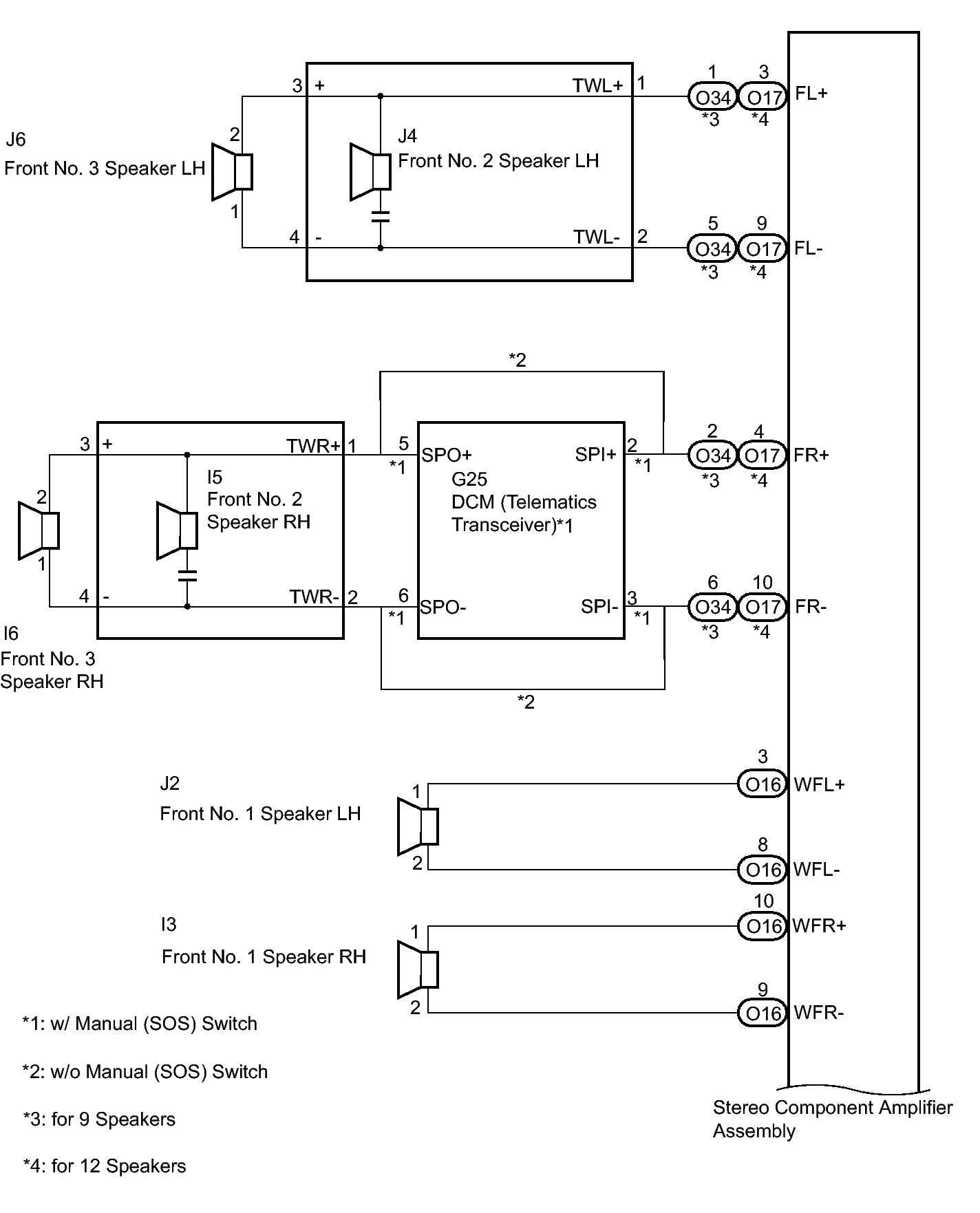

Fig 1: Stereo Component Amplifier Assembly - Wiring Diagram (1 Of 3)
GTY275565Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

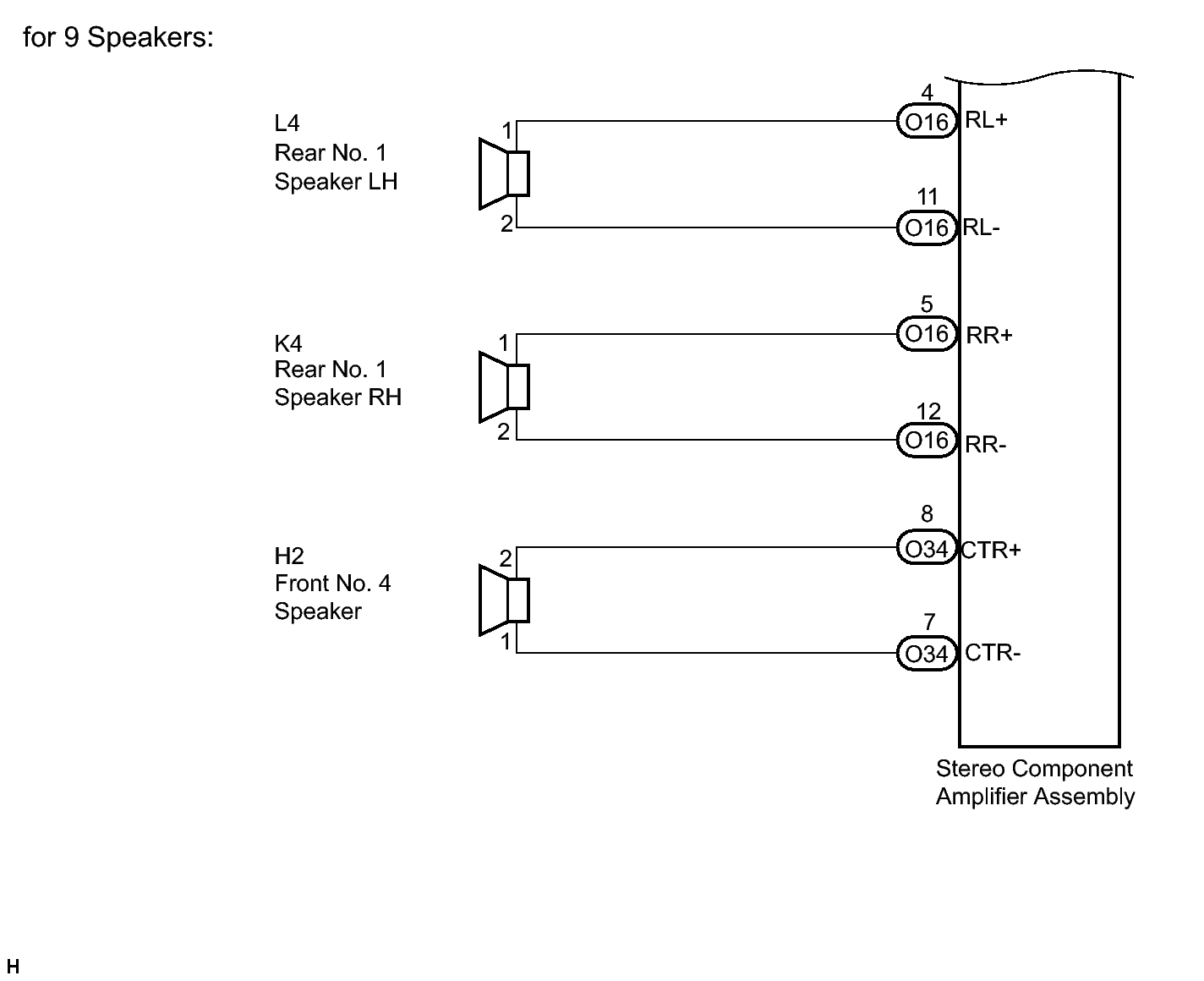

Fig 2: Stereo Component Amplifier Assembly - Wiring Diagram (2 Of 3)
GTY270590Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

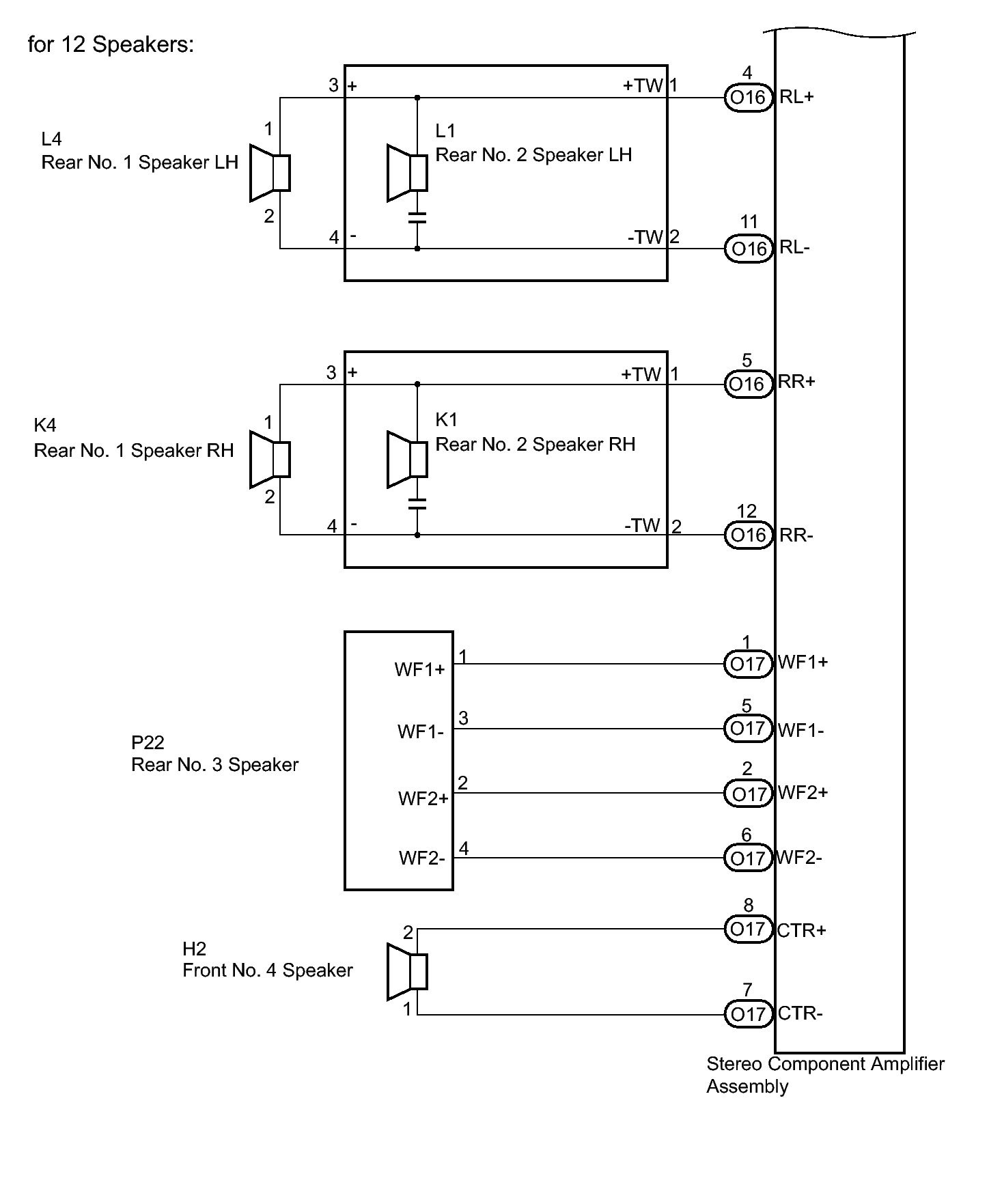

Fig 3: Stereo Component Amplifier Assembly - Wiring Diagram (3 Of 3)
GTY280755Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
