Lin Communication System (Diagnostic Codes B1206 - B278C)
>>
Lin Communication System
>>
DTC B2410: Headlight Swivel Motor LH Communication Malfunction; DTC B2411: Headlight Swivel Motor RH Communication Malfunction
>>
Wiring Diagram
DTC B2410: Headlight Swivel Motor LH Communication Malfunction; DTC B2411: Headlight Swivel Motor RH Communication Malfunction: Wiring Diagram

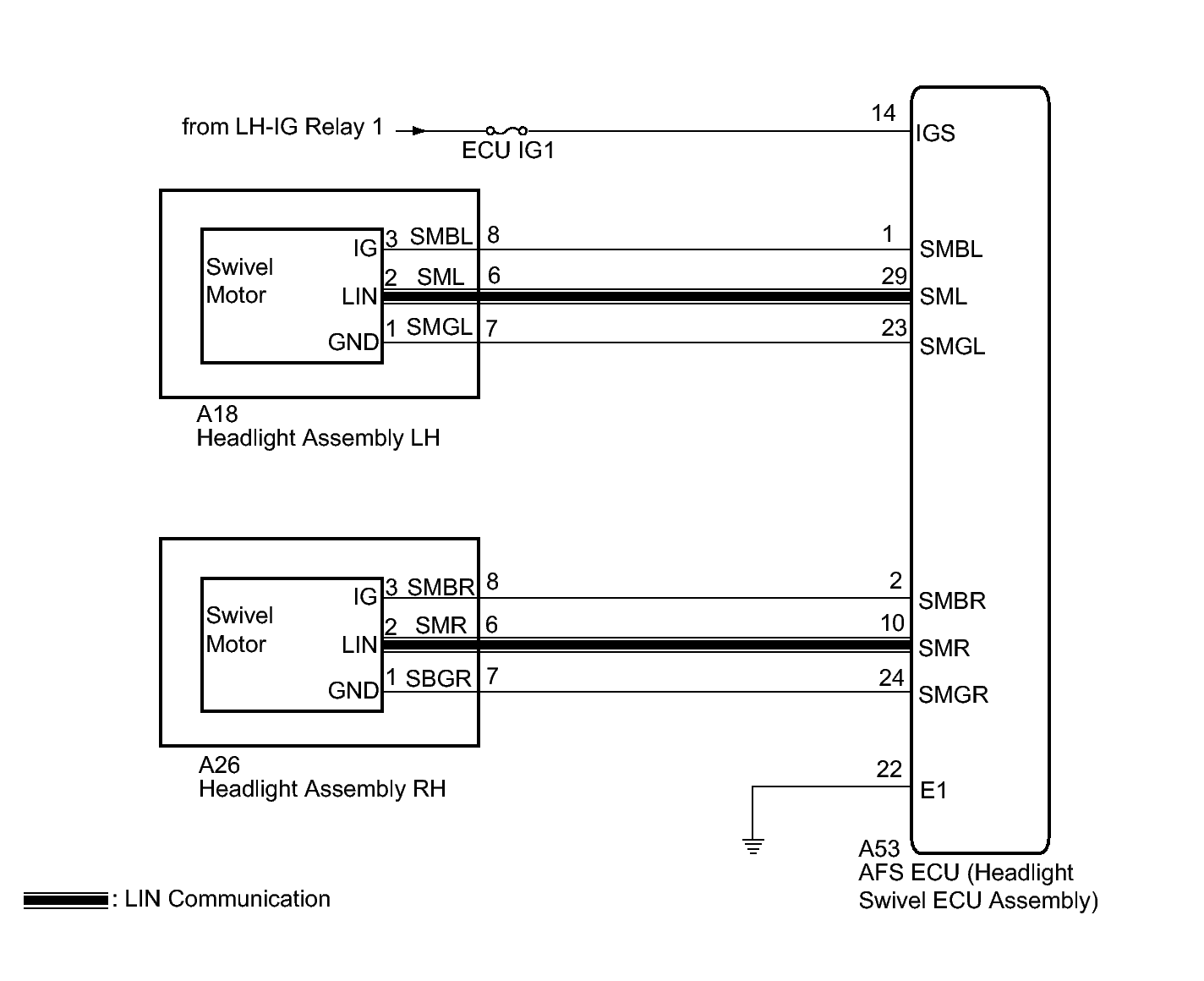

Fig 1: Identifying Headlight Swivel Motor LH, RH Communication System Diagram
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
