DTC B124D: Lost Communication with AFS LIN; DTC B2432: Lost Communication with Automatic High Beam Sensor: Wiring Diagram

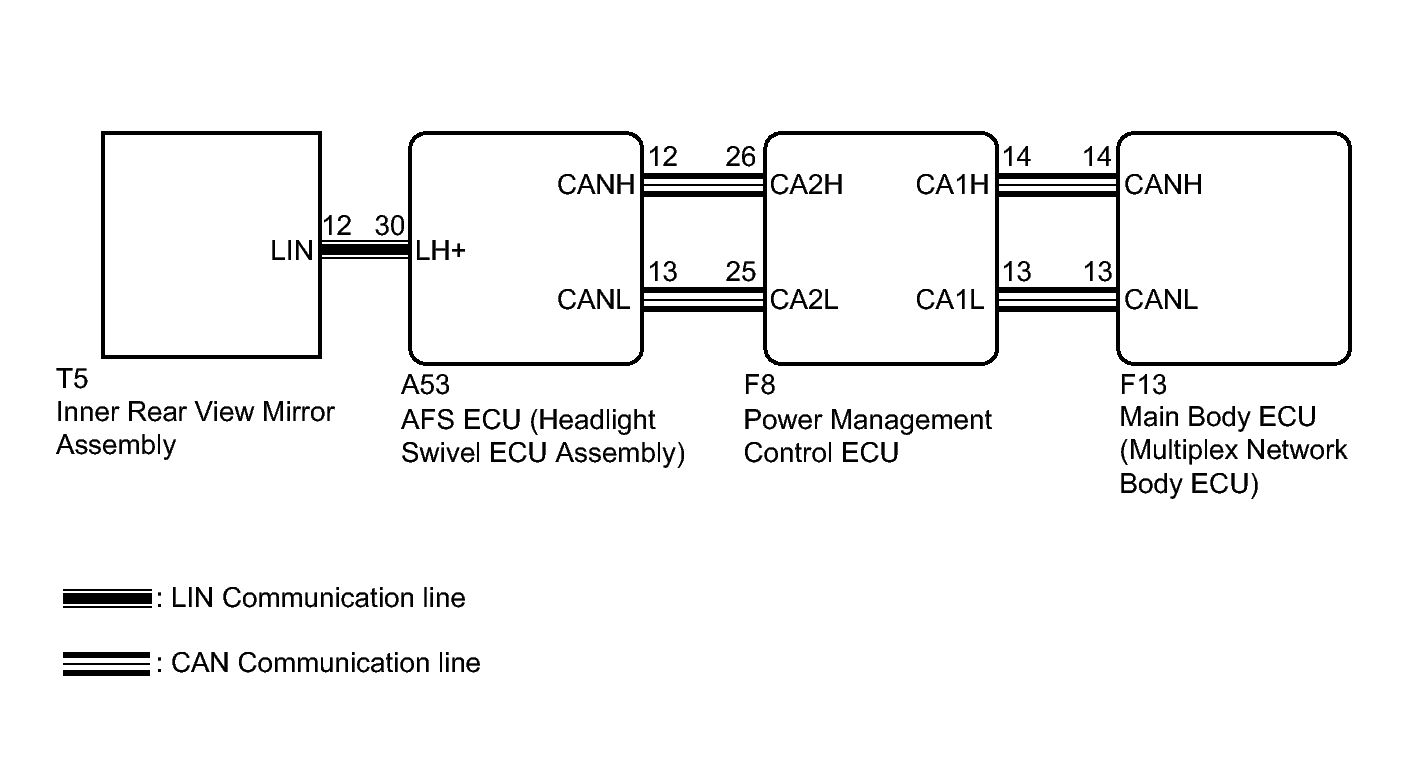

Fig 1: Identifying AFS LIN & Automatic High Beam Sensor System Diagram
GTY358617Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
