DTC U1100: Lost Communication with Seat Belt Control ECU: Wiring Diagram

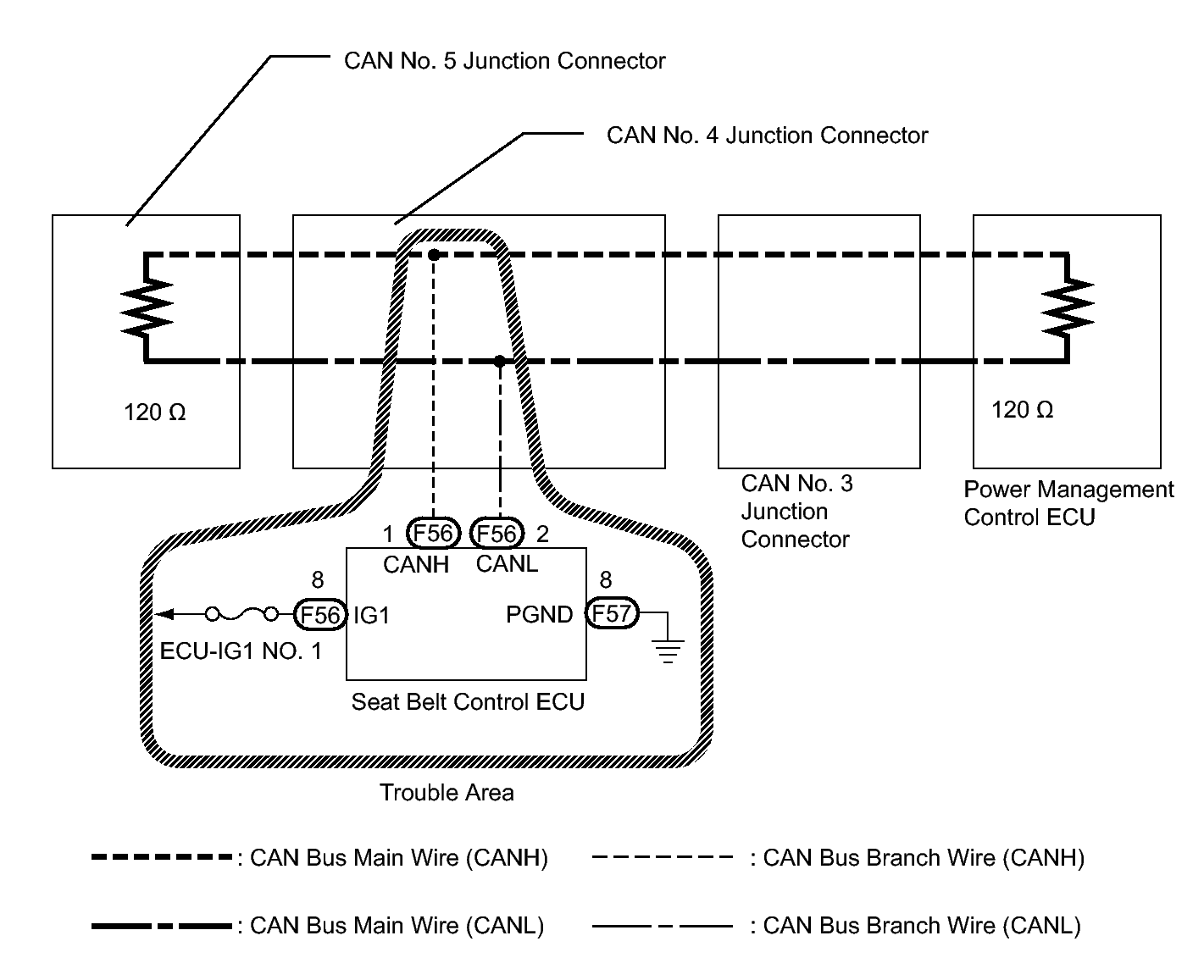

Fig 1: Identifying Seat Belt Control ECU Wiring Diagram

GTY350667

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
