DTC U0164: Lost Communication with A/C ECU: Wiring Diagram

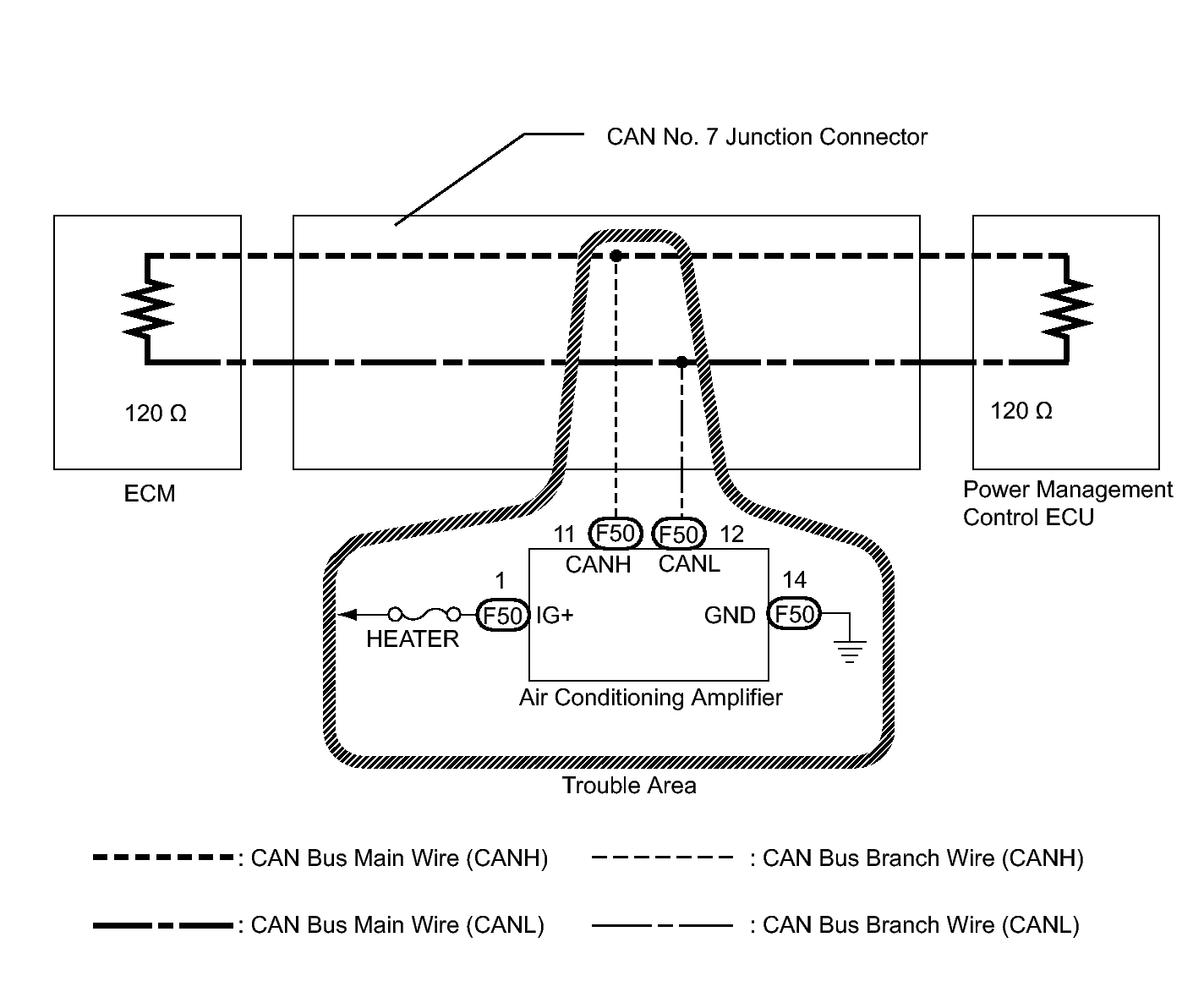

Fig 1: Identifying A/C ECU Wiring Diagram

GTY358918

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
