LX 570
>>
Repair and Diagnosis
>>
Restraints
>>
Air Bag, SRS
>>
Airbag System (Diagnostic Codes (B1000/31 - B1662/45))
>>
Airbag System
>>
DTC B1660/43: Passenger Airbag ON/OFF Indicator Circuit Malfunction (08/2010 - 08/2011)
>>
Wiring Diagram
DTC B1660/43: Passenger Airbag ON/OFF Indicator Circuit Malfunction (08/2010 - 08/2011): Wiring Diagram

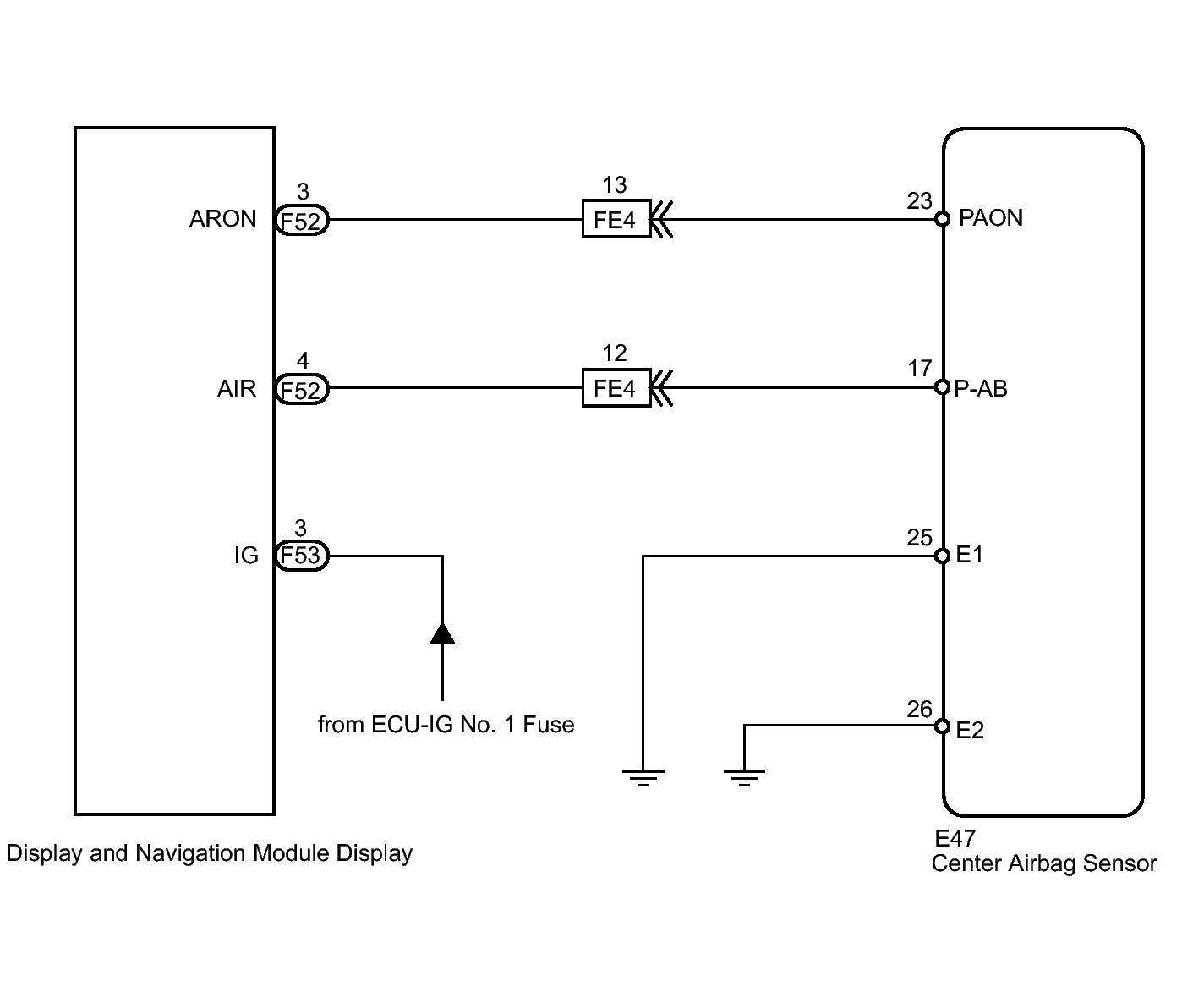

Fig 1: Center Airbag Sensor Assembly - Wiring Diagram
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
