DTC B1603/83: Front Satellite Sensor Bus RH Initialization Incomplete; DTC B1612/83: Lost Communication with Front Airbag Sensor RH; DTC B1613/83: Front Airbag Sensor RH Initialization Incomplete (08/2010 - 08/2011): Procedure

1. Turn the engine switch off.
2. Disconnect the cable from the negative (-) battery terminal, and wait for at least 90 seconds.
3. Check that the connectors are properly connected to the center airbag sensor and the front airbag sensor RH.

   OK

   The connectors are properly connected.

NG → CONNECT CONNECTORS PROPERLY

OK: Go to next step

1. Disconnect the connectors from the center airbag sensor and front airbag sensor RH.
2. Check that the connectors (on the center airbag sensor side and front airbag sensor RH side) are not damaged.

   OK

   The connectors are not deformed or damaged.

NG → REPLACE HARNESS AND CONNECTOR

OK: Go to next step

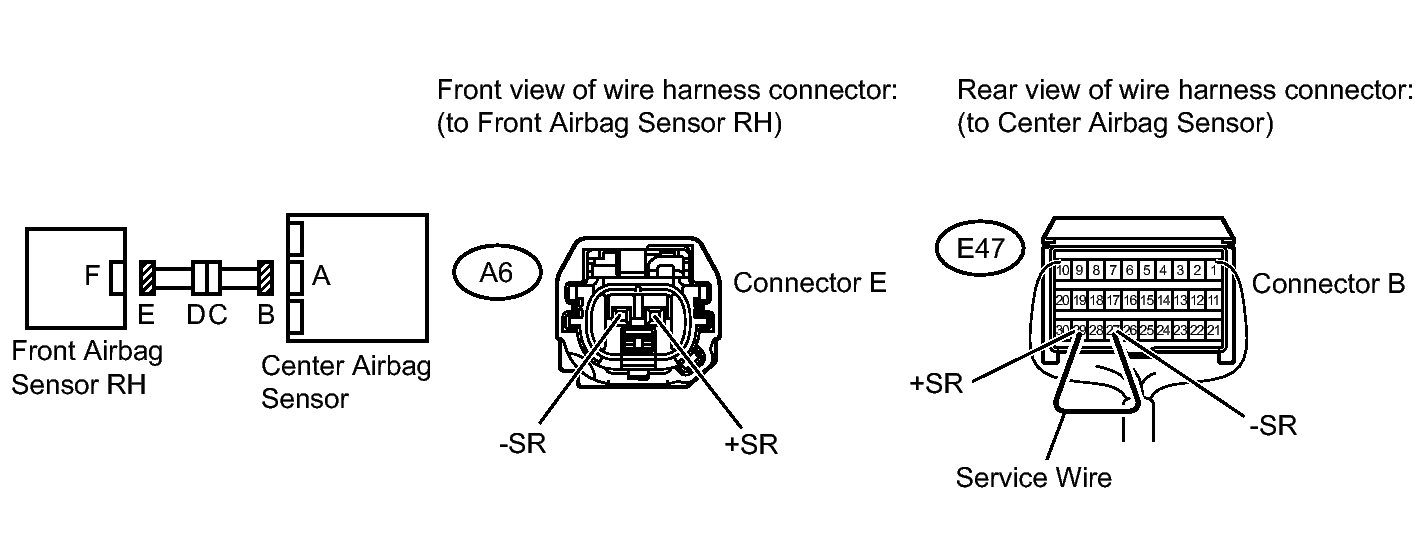

Fig 1: Identifying Front Airbag Sensor RH & Center Air Bag Sensor Connector Terminal

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Connect the cable to the negative (-) battery terminal, and wait for at least 2 seconds.
2. Measure the voltage according to the value(s) in the table below.

   Standard Voltage

   Tester Connection	Switch Condition	Specified Condition
   A6-2 (+SR) - Body ground	Engine switch on (IG)	Below 1 V
   A6-1 (-SR) - Body ground	Engine switch on (IG)	Below 1 V

3. Turn the engine switch off.
4. Disconnect the cable from the negative (-) battery terminal, and wait for at least 90 seconds.
5. Using a service wire, connect terminals 29 (+SR) and 27 (-SR) of connector B.
   NOTE:

   Do not forcibly insert the service wire into the terminals of the connector when connecting a service wire.

6. Measure the resistance according to the value(s) in the table below.

   Standard Resistance

   Tester Connection	Condition	Specified Condition
   A6-2 (+SR) - A6-1 (-SR)	Always	Below 1 Ω

7. Disconnect the service wire from connector B.
8. Measure the resistance according to the value(s) in the table below.

   Standard Resistance

   Tester Connection	Condition	Specified Condition
   A6-2 (+SR) - A6-1 (-SR)	Always	1 MΩ or higher
   A6-2 (+SR) - Body ground	Always	1 MΩ or higher
   A6-1 (-SR) - Body ground	Always	1 MΩ or higher

NG → See step   5

OK: Go to next step

Fig 2: Checking Front Airbag Sensor RH

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Connect the connectors to the center airbag sensor.
2. Interchange the front airbag sensor LH with RH and connect the connectors to them.
3. Connect the cable to the negative (-) battery terminal, and wait for at least 2 seconds.
4. Turn the engine switch on (IG), and wait for at least 60 seconds.
5. Clear the DTCs stored in the memory. Refer to DTC CHECK / CLEAR .
6. Turn the engine switch off.
7. Turn the engine switch on (IG), and wait for at least 60 seconds.
8. Check for DTCs. Refer to DTC CHECK / CLEAR .
   RESULT



   Result	Proceed to
   DTC B1612, B1613, B1617 and B1618 are not output	A
   DTC B1617 or B1618 is output	B
   DTC B1612 or B1613 is output	C

   HINT:

   Codes other than DTC B1612, B1613, B1617 and B1618 may be output at this time, but they are not related to this check.

A → See step   6

B → See step   7

C → See step   8

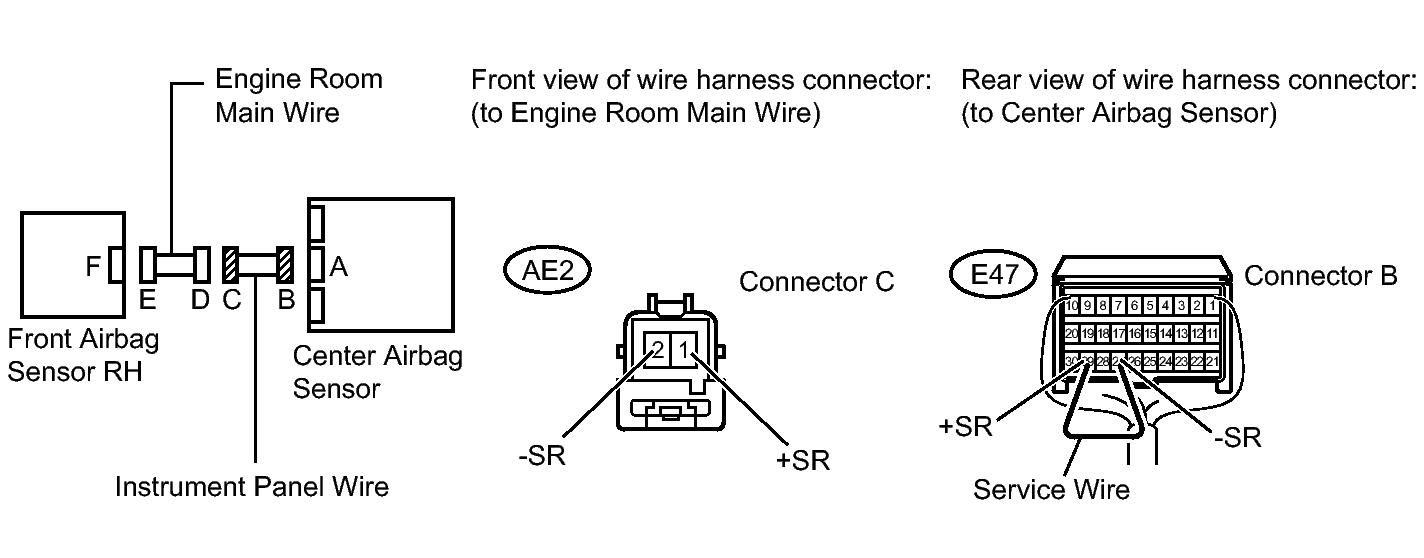

Fig 3: Identifying Center Airbag Sensor Connector Terminal E47 And Engine Room Main Wire Connector Terminal AE2

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Disconnect the instrument panel wire connector from the engine room main wire.
2. Connect the cable to the negative (-) battery terminal, and wait for at least 2 seconds.
3. Measure the voltage according to the value(s) in the table below.

   Standard Voltage

   Tester Connection	Switch Condition	Specified Condition
   AE2-1 (+SR) - Body ground	Engine switch on (IG)	Below 1 V
   AE2-2 (-SR) - Body ground	Engine switch on (IG)	Below 1 V

4. Turn the engine switch off.
5. Disconnect the cable from the negative (-) battery terminal, and wait for at least 90 seconds.
6. Using a service wire, connect terminals 29 (+SR) and 27 (-SR) of connector B.
   NOTE:

   Do not forcibly insert the service wire into the terminals of the connector when connecting a service wire.

7. Measure the resistance according to the value(s) in the table below.

   Standard Resistance

   Tester Connection	Condition	Specified Condition
   AE2-1 (+SR) - AE2-2 (-SR)	Always	Below 1 Ω

8. Disconnect the service wire from connector B.
9. Measure the resistance according to the value(s) in the table below.

   Standard Resistance

   Tester Connection	Condition	Specified Condition
   AE2-1 (+SR) - AE2-2 (-SR)	Always	1 MΩ or higher
   AE2-1 (+SR) - Body ground	Always	1 MΩ or higher
   AE2-2 (-SR) - Body ground	Always	1 MΩ or higher

NG → REPLACE INSTRUMENT PANEL WIRE

OK → REPLACE ENGINE ROOM MAIN WIRE
