: Location of Ground Points

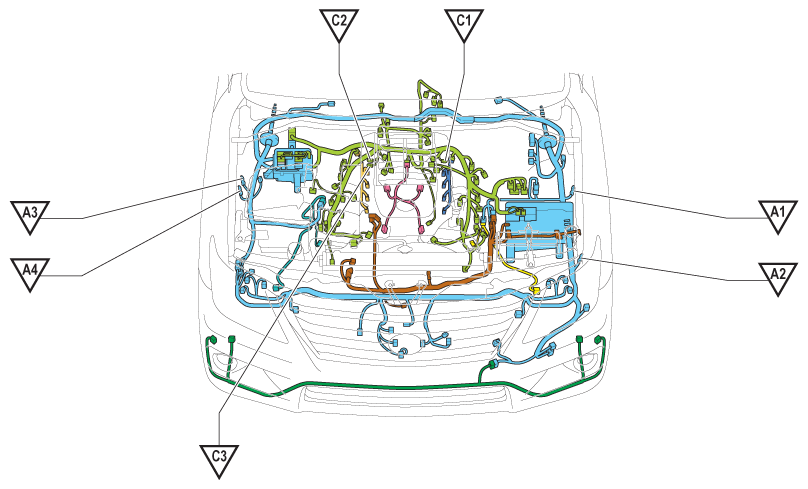

Fig 1: Locating Ground Points
G07575435Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

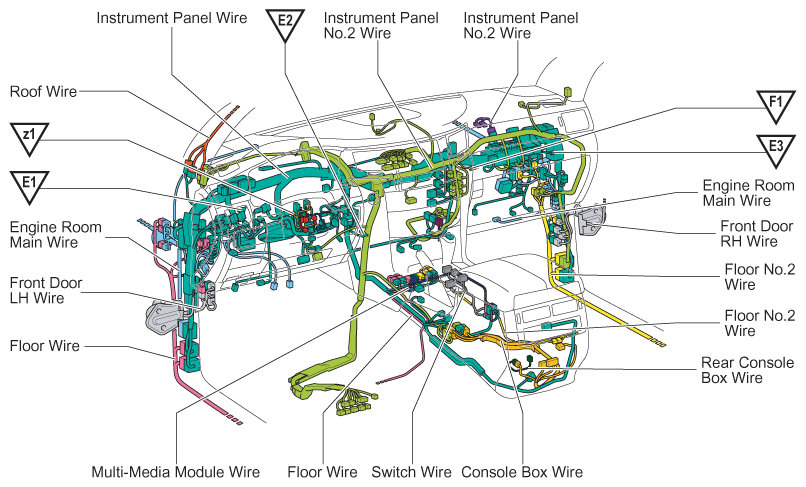

Fig 1: Locating Ground Points
G07575437Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

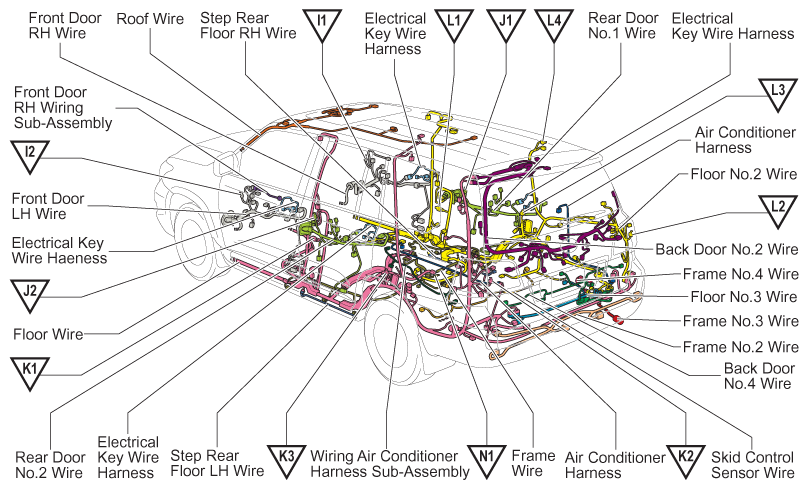

Fig 1: Locating Ground Points
G07575441Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
