: Location of Connector Joining Wire Harness and Wire Harness: Overview

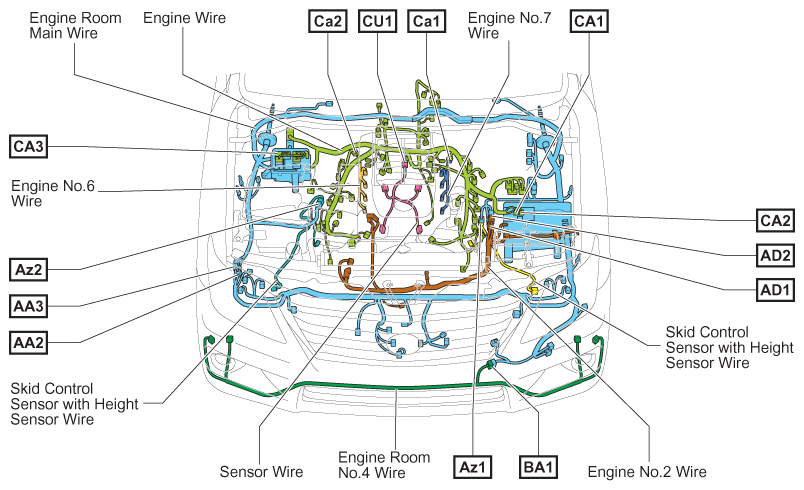

Fig 1: Locating Wire Harness Points

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

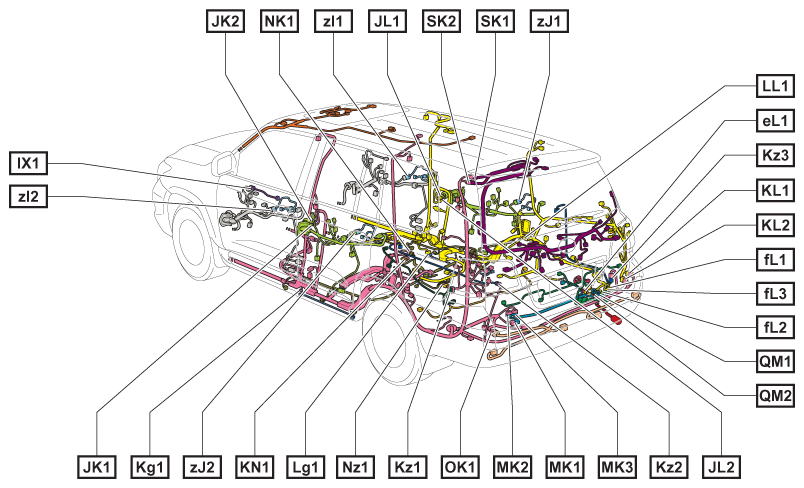

Fig 1: Locating Wire Harness Points

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

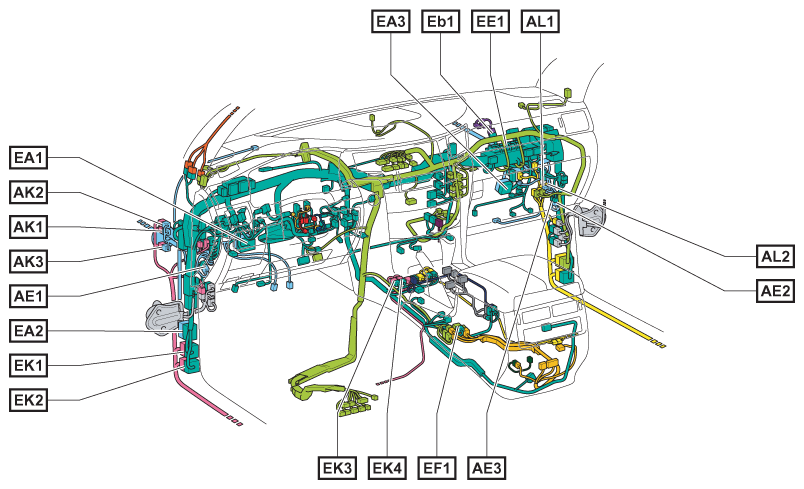

Fig 1: Locating Wire Harness Points (1 Of 3)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

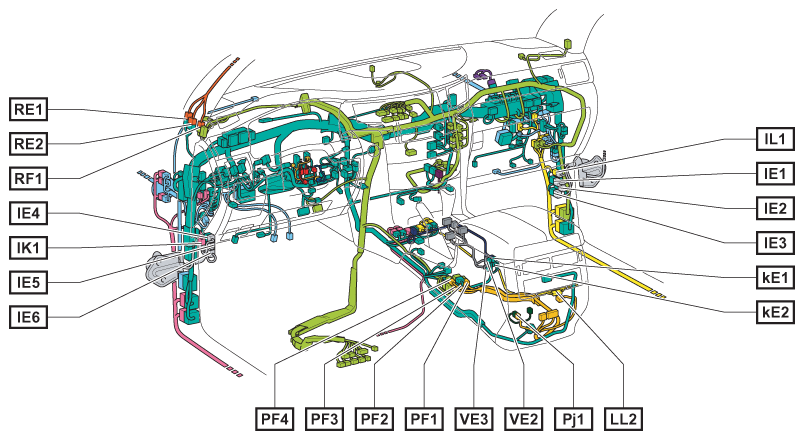

Fig 2: Locating Wire Harness Points (2 Of 3)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

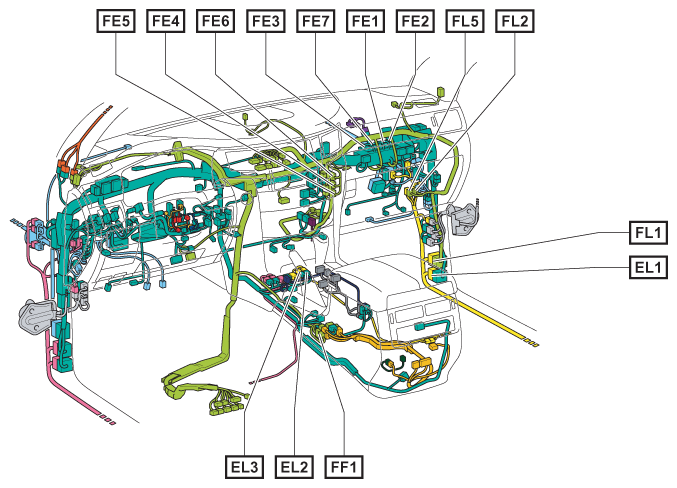

Fig 3: Locating Wire Harness Points (3 Of 3)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
