Meter Illumination does not Dim at Night (08/2010 - 08/2011): Wiring Diagram

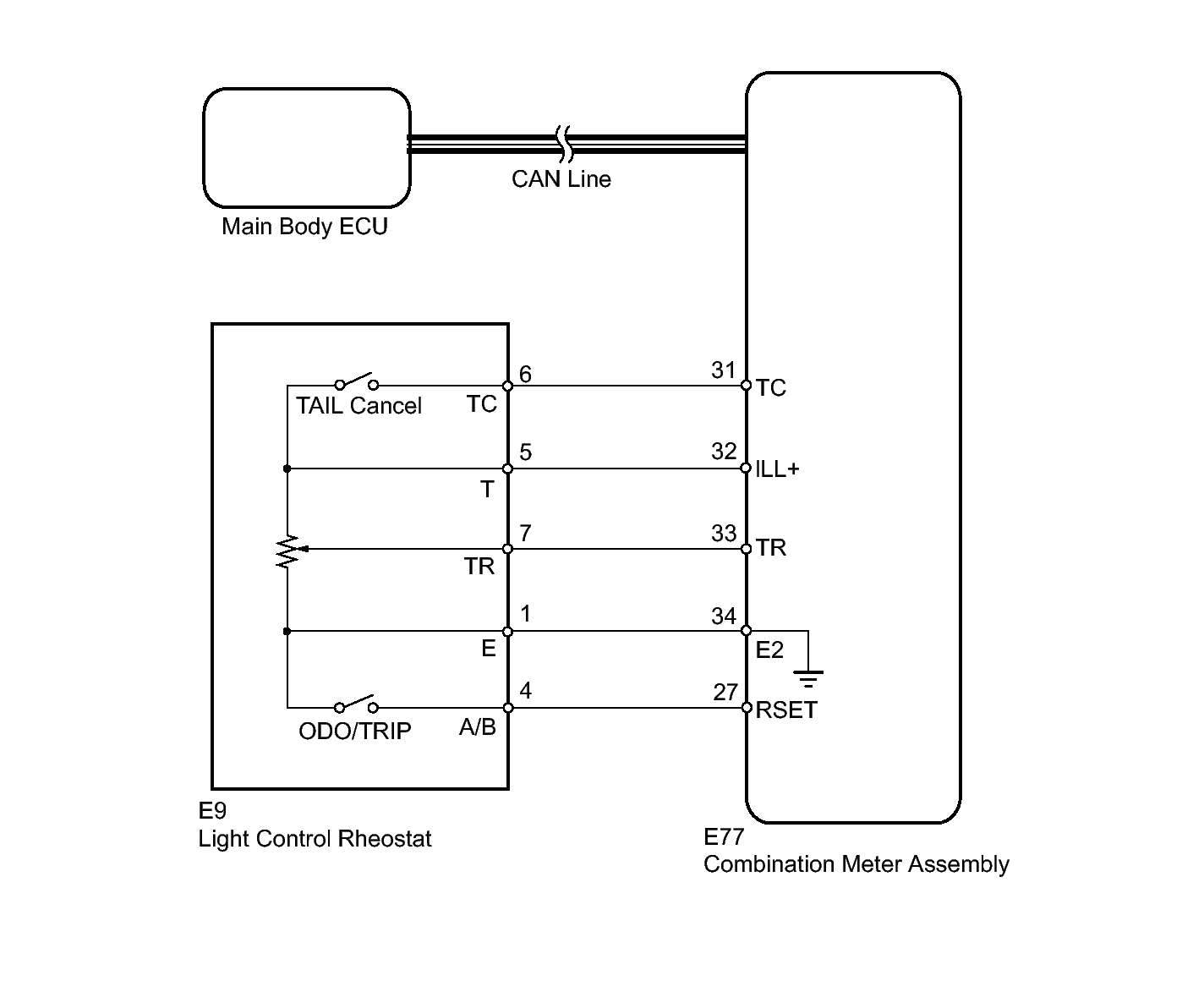

Fig 1: Combination Meter Assembly And Light Control Rheostat - Wiring Diagram

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
