Combination Meter: Components: Illustration

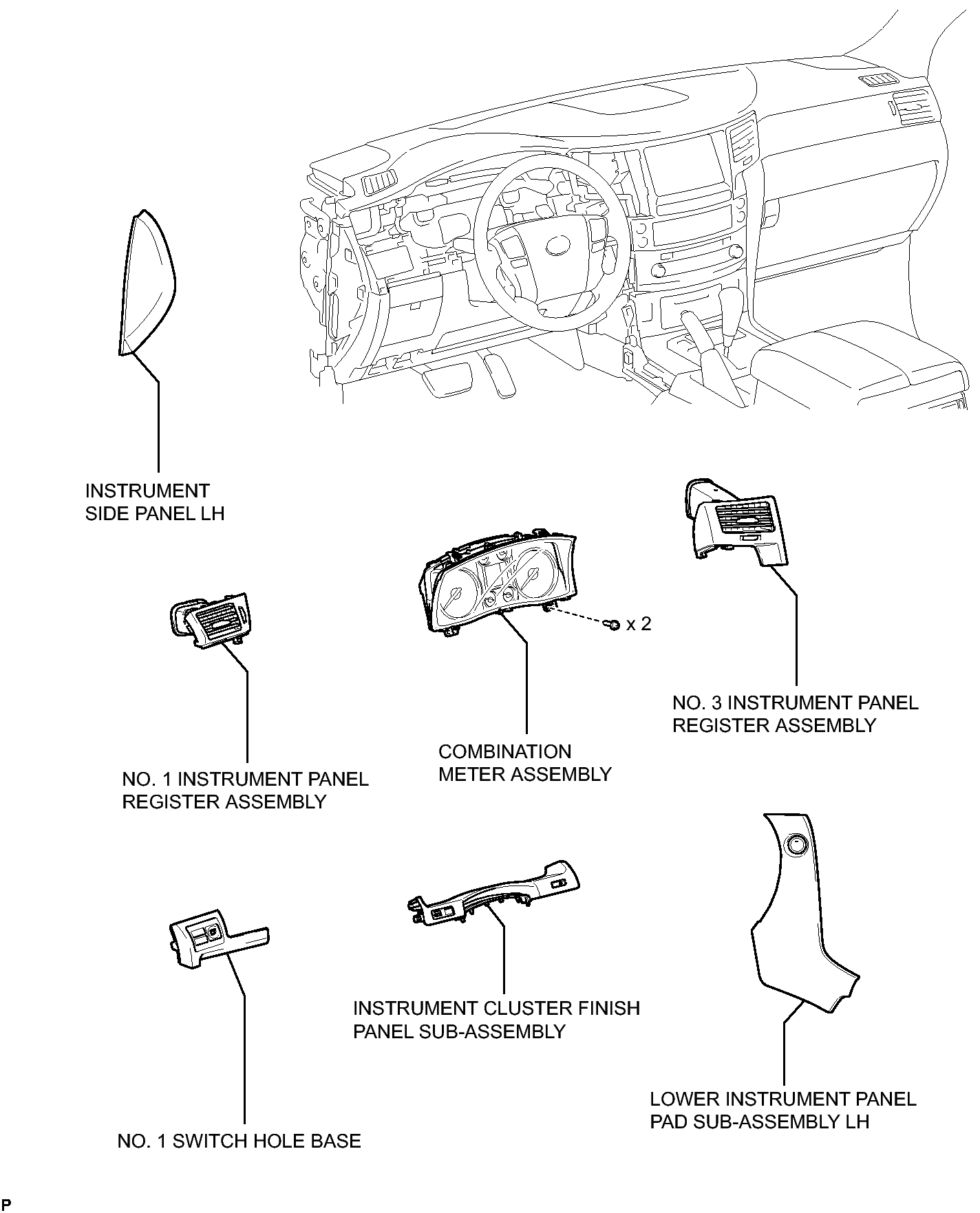

Fig 1: Identifying Combination Meter Replacement Components (1 Of 2)
GTY123882Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

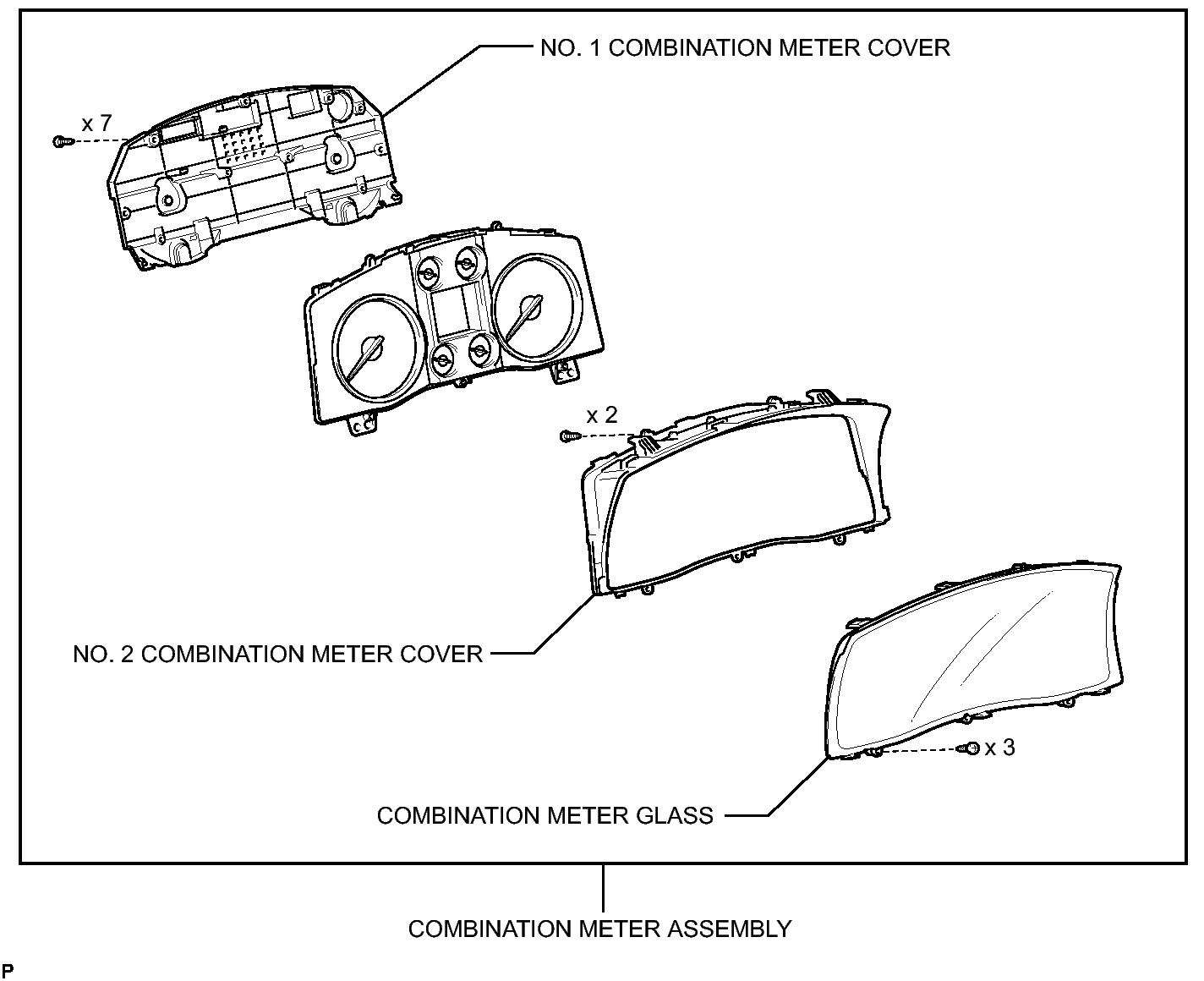

Fig 1: Identifying Combination Meter Replacement Components (2 Of 2)
GTY153699Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
