□ : Location of Connector Joining Wire Harness and Wire Harness: Overview

Fig 1: Locating Wire Harness Points

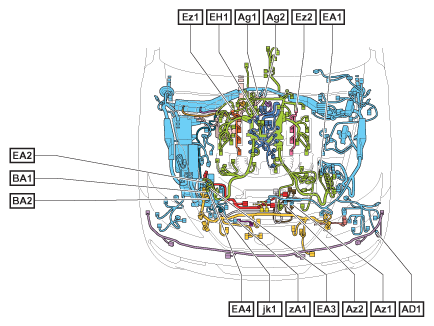

G07565828Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002


Fig 1: Locating Wire Harness Points

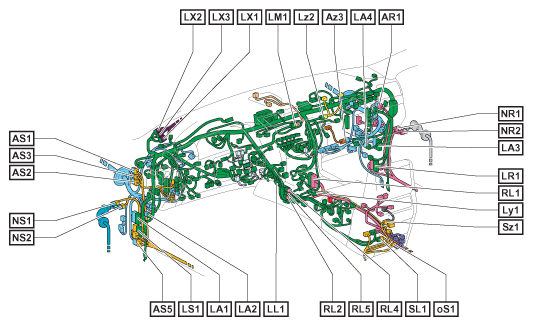

G07565830Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002


Fig 1: Locating Wire Harness Points

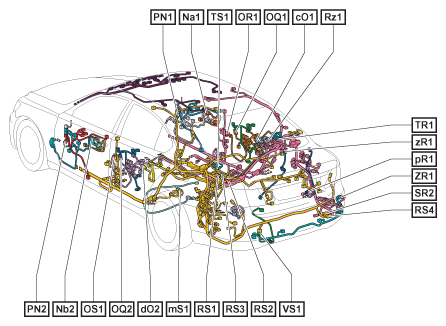

G07565832Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
