Only Rear Switch Cannot Operate Rear Sunshade: Wiring Diagram

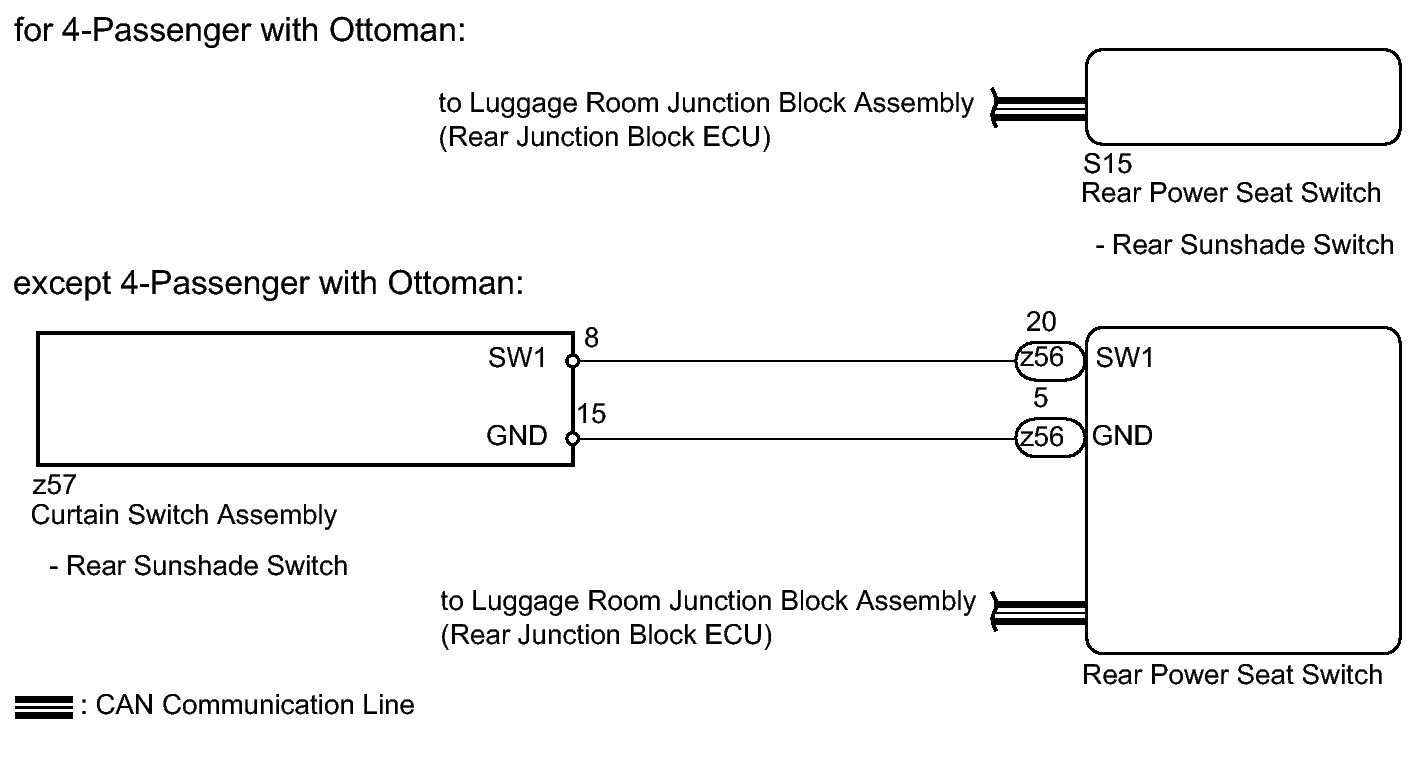

Fig 1: Rear Switch/Rear Sunshade Communication CAN Line - Wiring Diagram

GTY263263

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
