Position of Parts in Instrument Panel

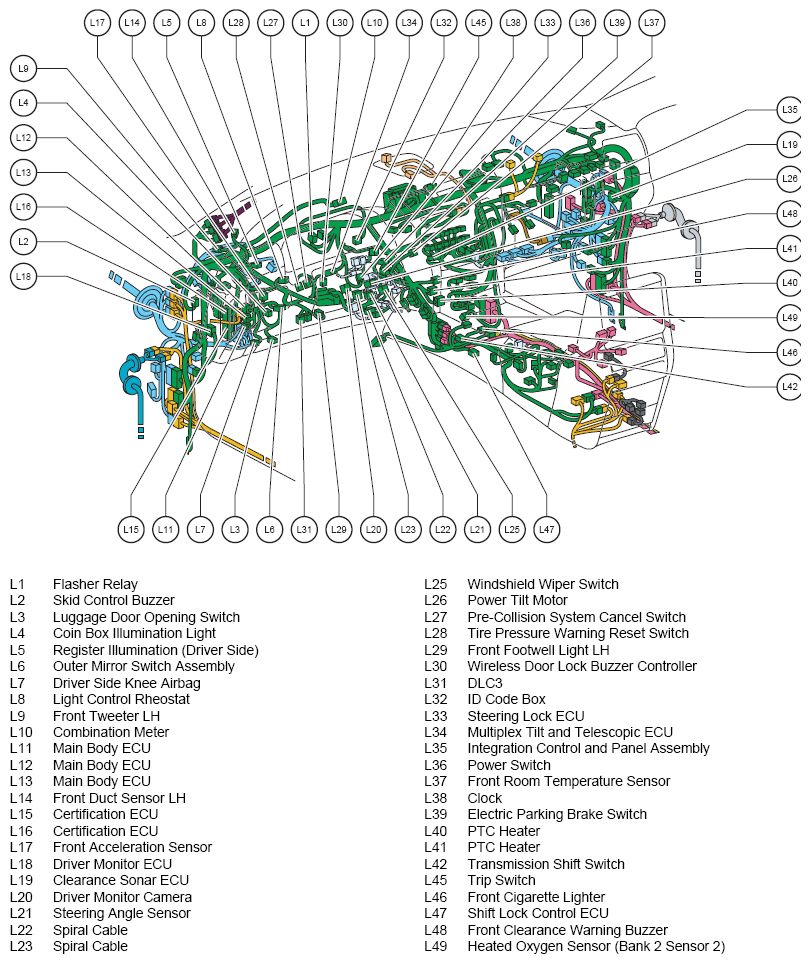

Fig 1: Identifying Instrument Panel Parts (1 Of 4)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

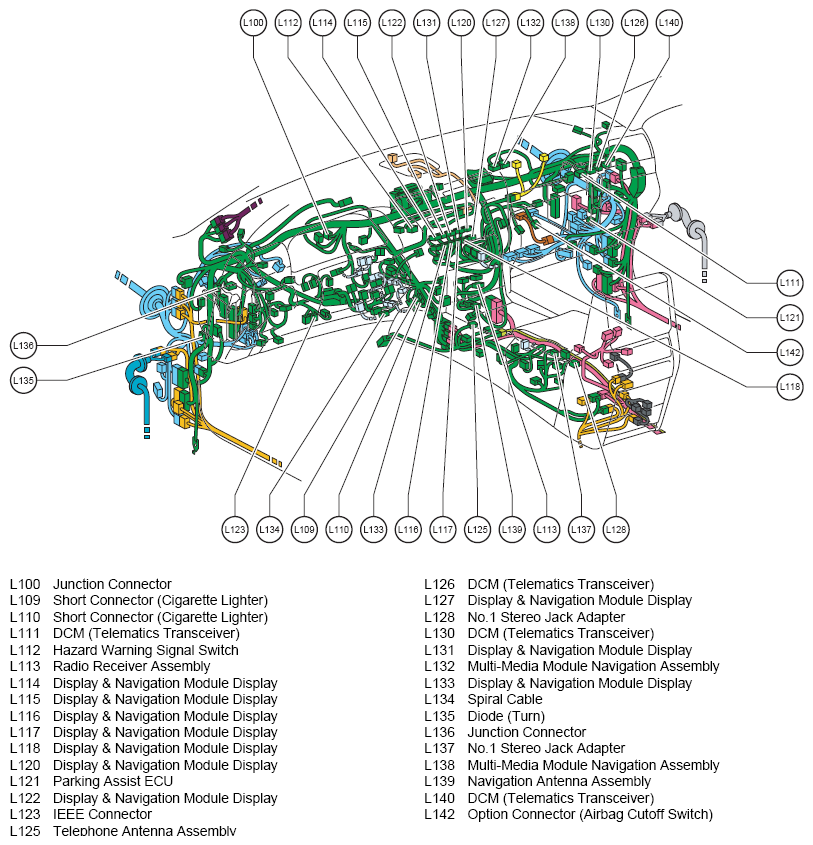

Fig 2: Identifying Instrument Panel Parts (2 Of 4)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

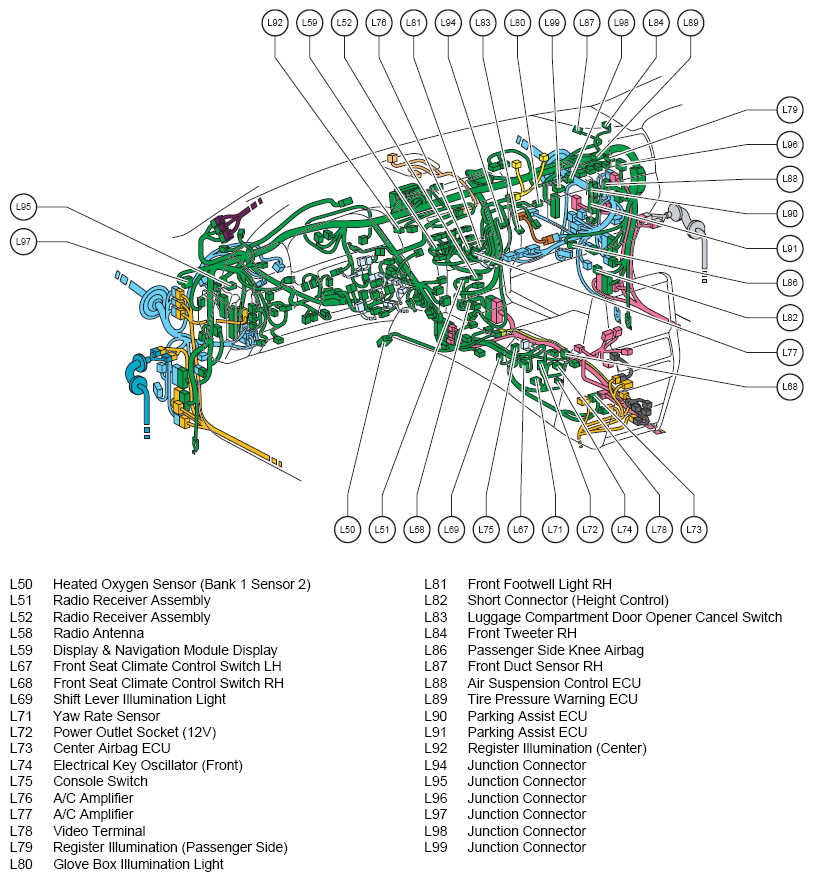

Fig 3: Identifying Instrument Panel Parts (3 Of 4)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

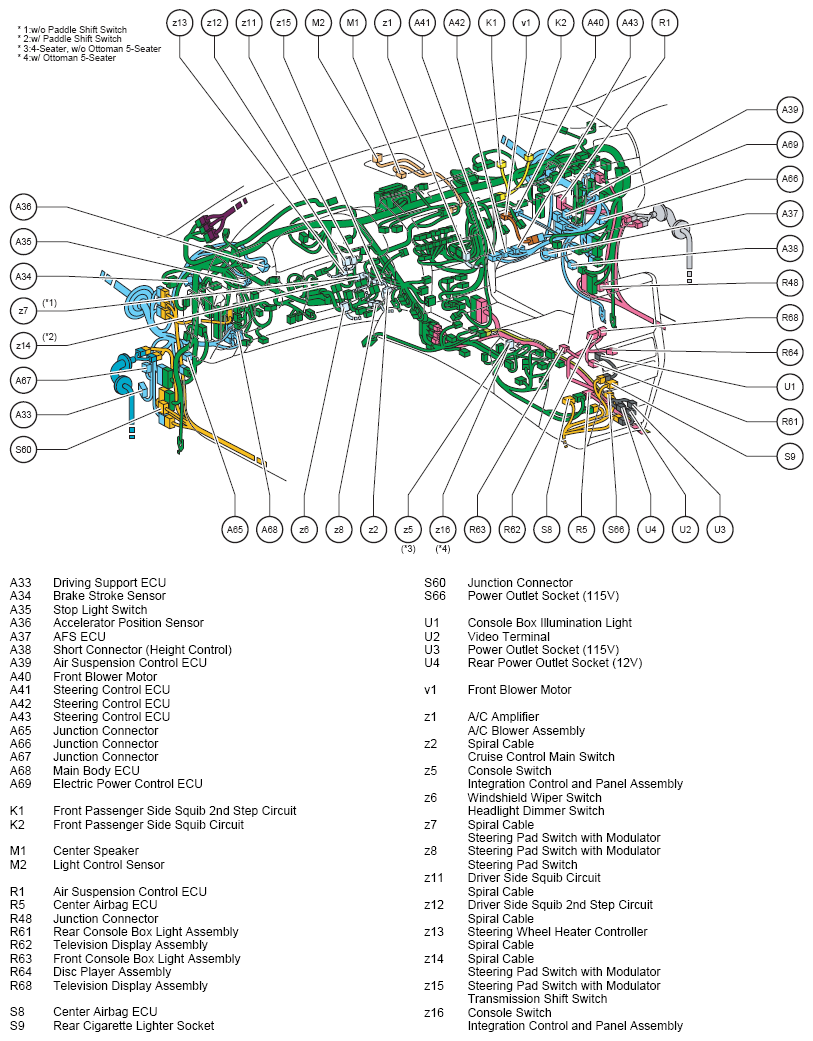

Fig 4: Identifying Instrument Panel Parts (4 Of 4)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
