Position of Parts in Body

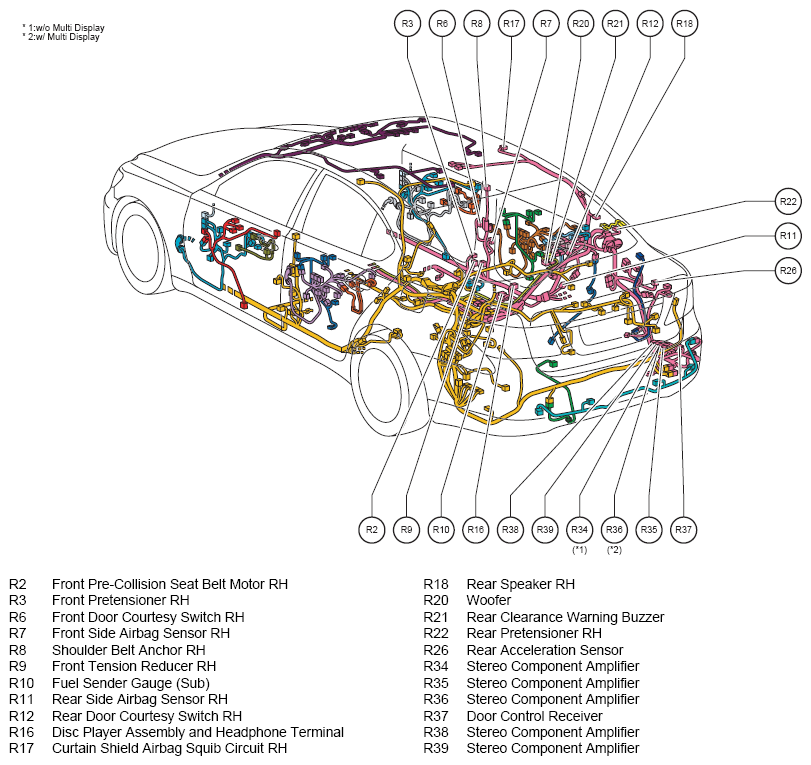

Fig 1: Identifying Body Parts (1 Of 8)

G07564735

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

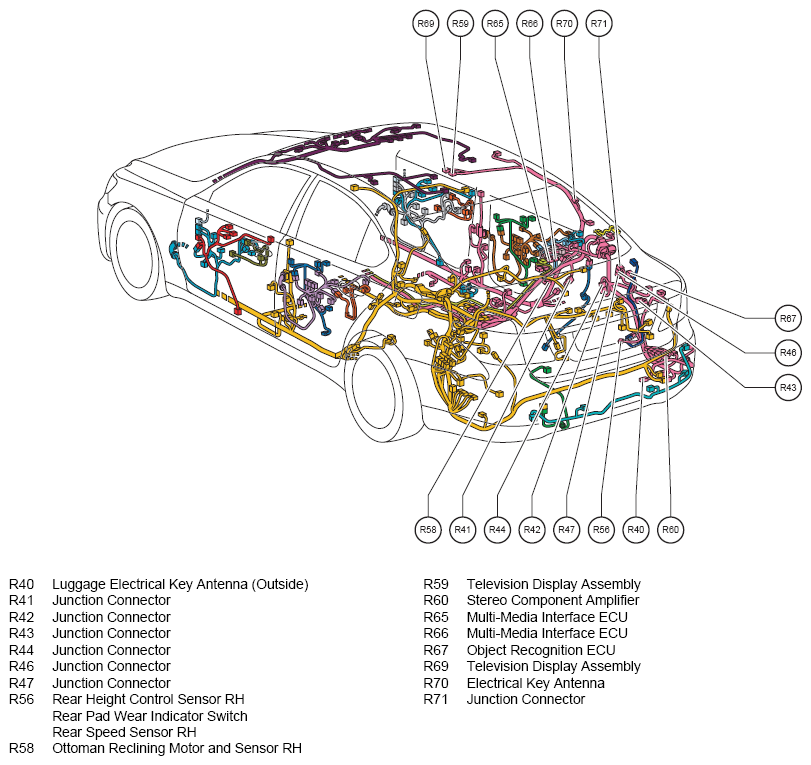

Fig 2: Identifying Body Parts (2 Of 8)

G07564736

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

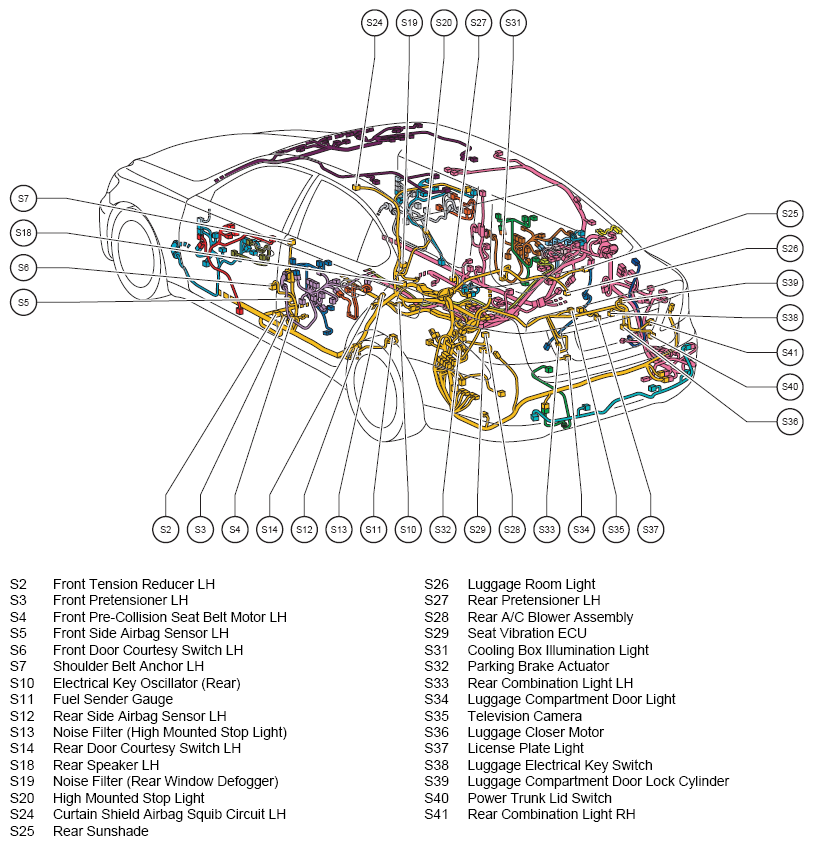

Fig 3: Identifying Body Parts (3 Of 8)

G07564737

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

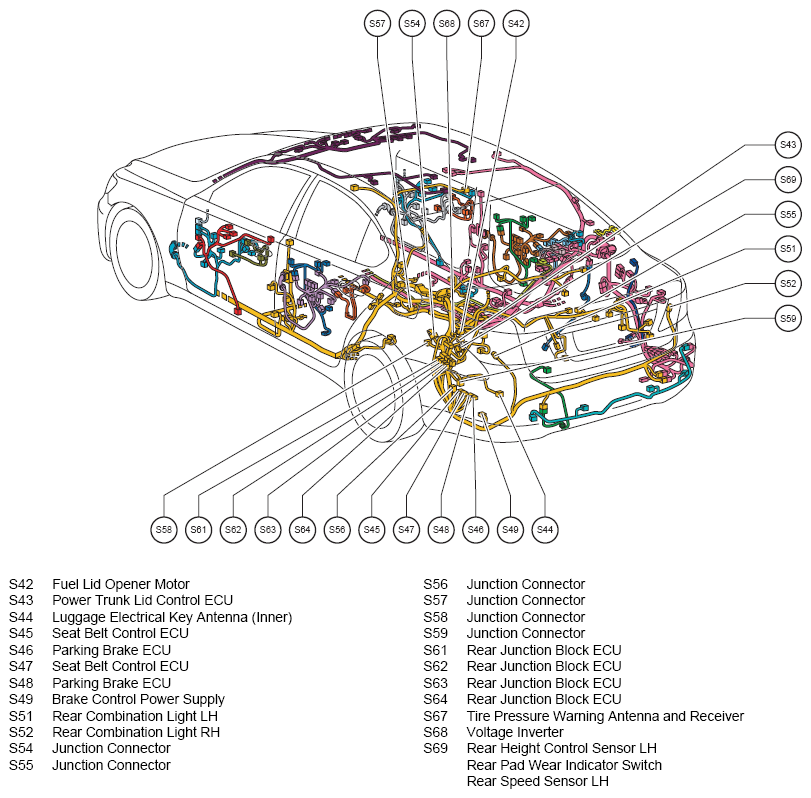

Fig 4: Identifying Body Parts (4 Of 8)

G07564738

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

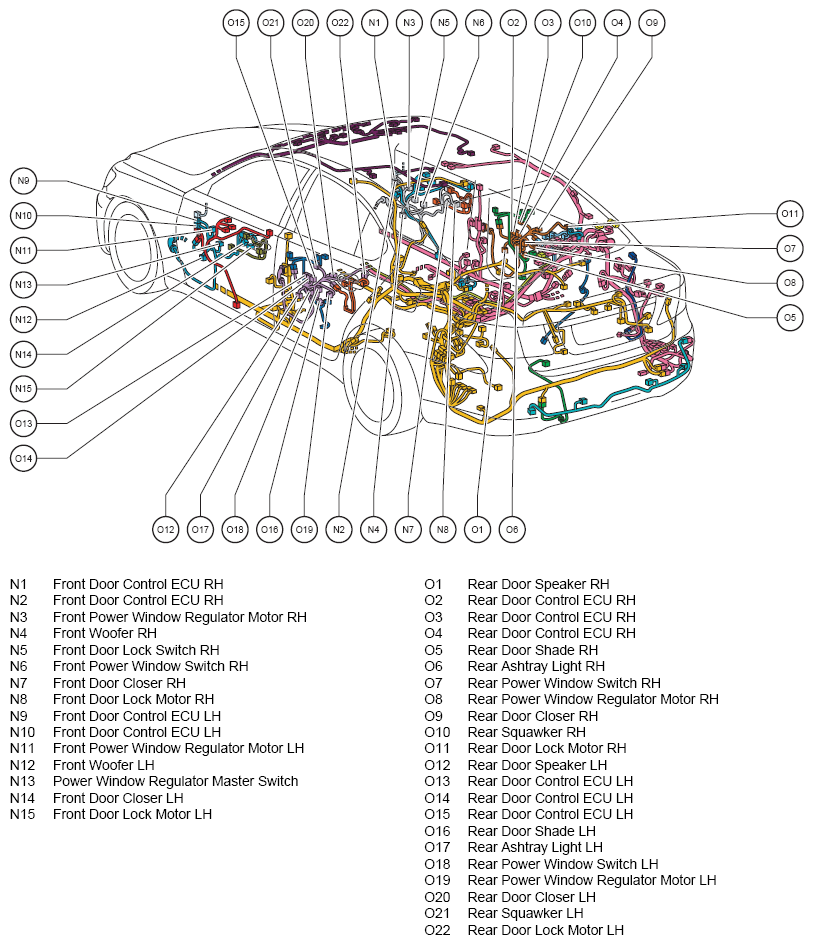

Fig 5: Identifying Body Parts (5 Of 8)

G07564739

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

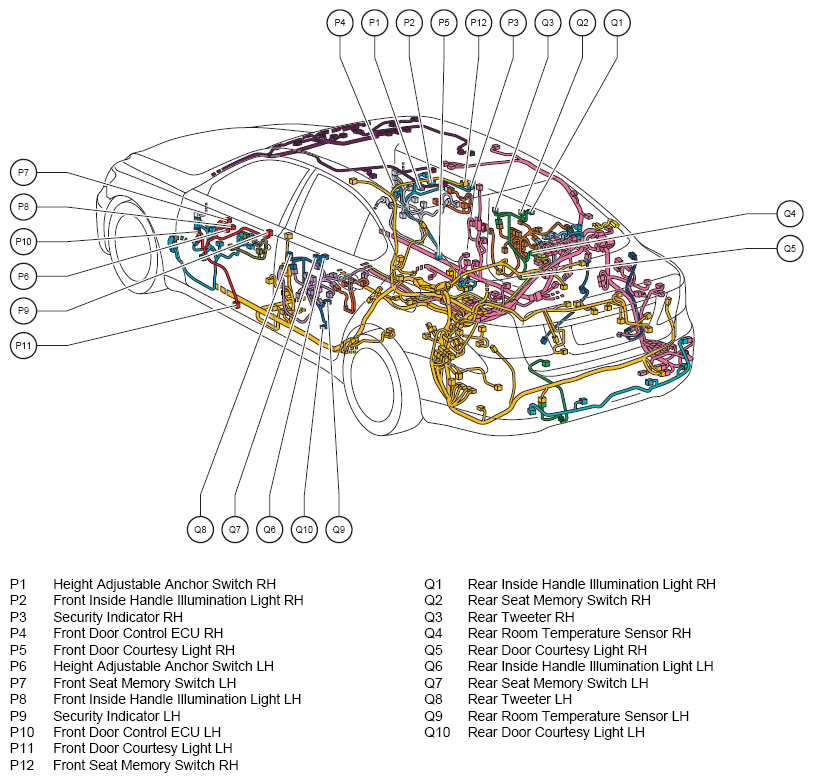

Fig 6: Identifying Body Parts (6 Of 8)

G07564740

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

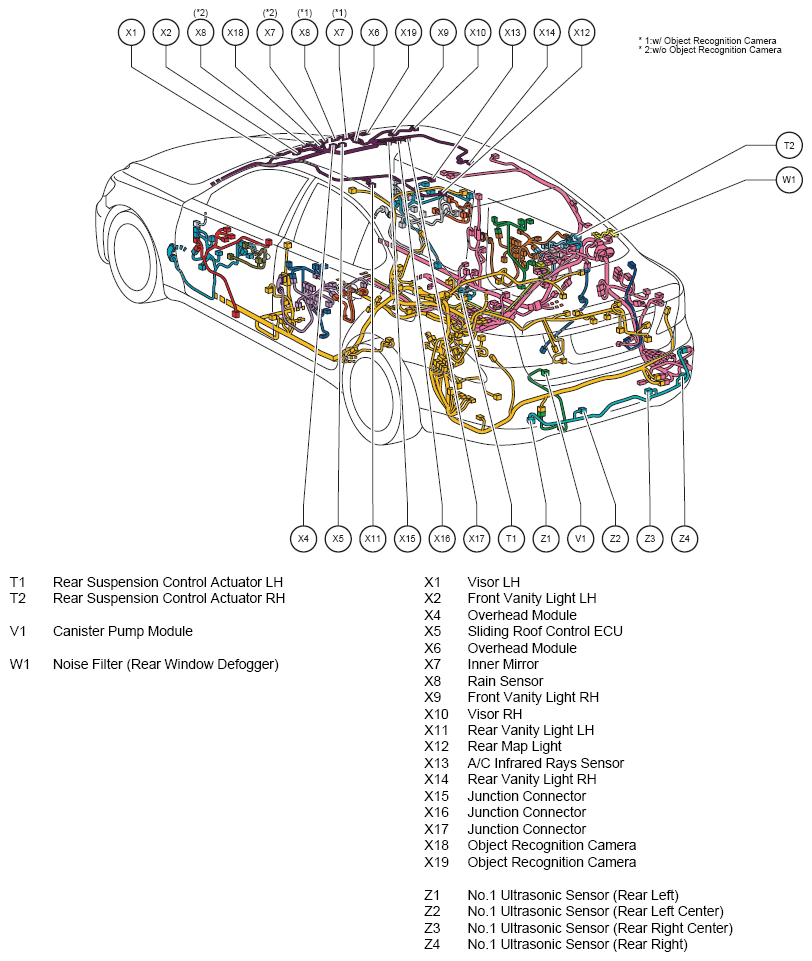

Fig 7: Identifying Body Parts (7 Of 8)

G07564741

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

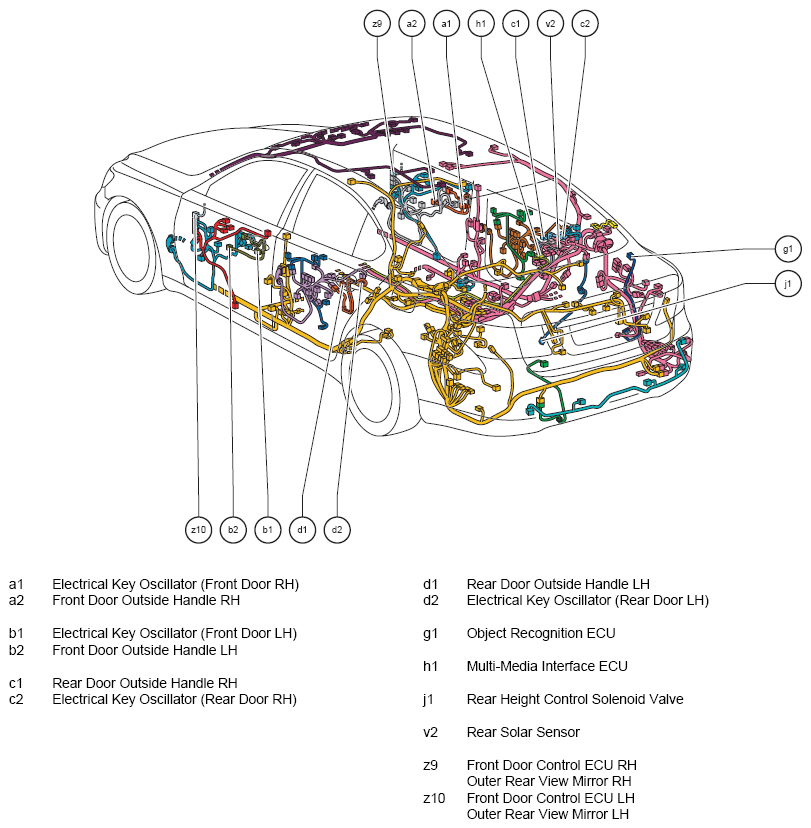

Fig 8: Identifying Body Parts (8 Of 8)

G07564742

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
