: Location of Connector Joining Wire Harness and Wire Harness: Overview

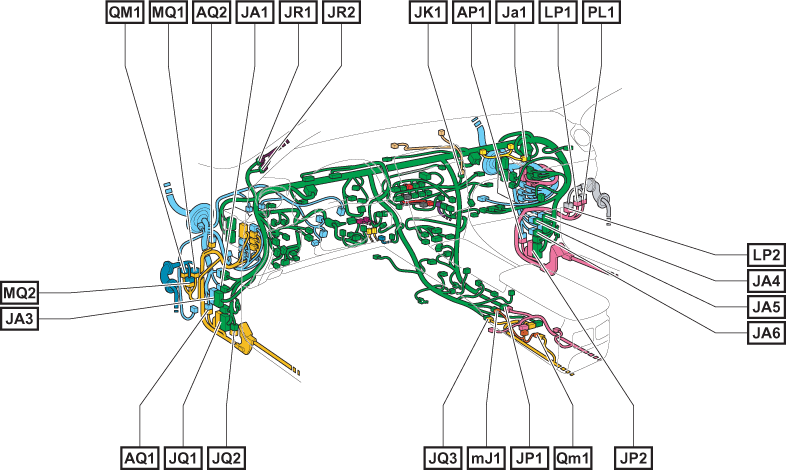

Fig 1: Locating Wire Harness Points
G07585310Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

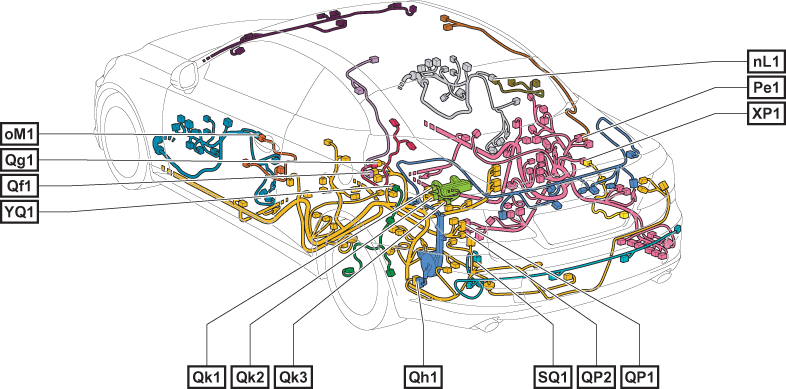

Fig 1: Locating Wire Harness Points
G07585311Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

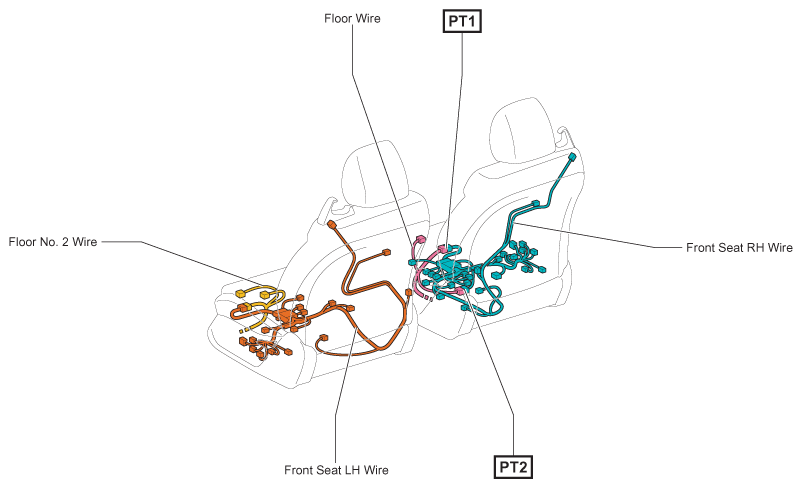

Fig 1: Locating Wire Harness Points
G07585312Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
