Transmission Speed Sensor: Testing and Inspection

A760H AUTOMATIC TRANSMISSION: SPEED SENSOR: INSPECTION

1. INSPECT TRANSMISSION REVOLUTION SENSOR (NT)

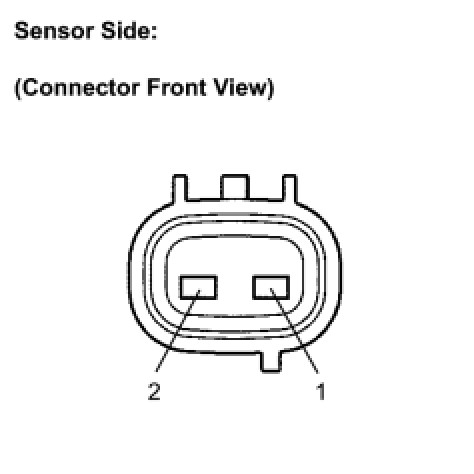

(a) Measure the resistance according to the value(s) in the table below.









If the resistance value is not as specified, replace the speed sensor.

2. INSPECT TRANSMISSION REVOLUTION SENSOR (SP2)

(a) Measure the resistance according to the value(s) in the table below.









If the resistance value is not as specified, replace the speed sensor.
