Removal

A760H AUTOMATIC TRANSMISSION: SPEED SENSOR: REMOVAL

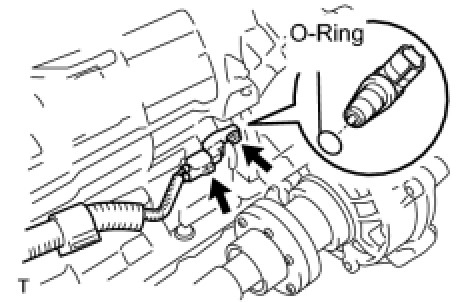

1. REMOVE TRANSMISSION REVOLUTION SENSOR (NT)

(a) Disconnect the transmission revolution sensor connector.





(b) Remove the bolt and transmission revolution sensor.

(c) Remove the O-ring from the transmission revolution sensor.

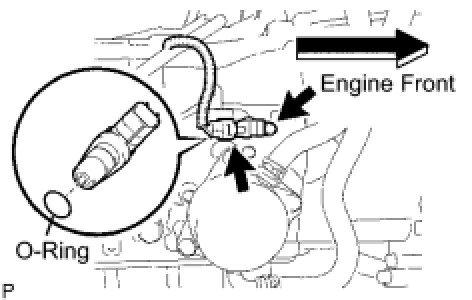

2. REMOVE TRANSMISSION REVOLUTION SENSOR (SP2)

(a) Disconnect the transmission revolution sensor connector.





(b) Remove the bolt and transmission revolution sensor.

(c) Remove the O-ring from the transmission revolution sensor.
