Transmission Control Switch

A760H AUTOMATIC TRANSMISSION: TRANSMISSION CONTROL SWITCH: INSPECTION

1. INSPECT TRANSMISSION CONTROL SWITCH

(a) Connect the park/neutral position switch connector.

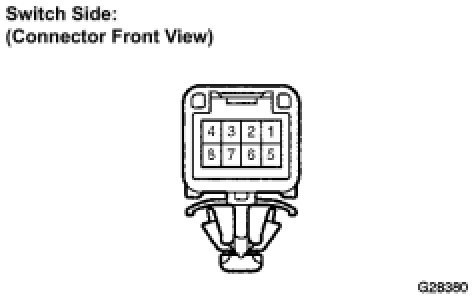

(b) Disconnect the transmission control switch connector of the shift lock control unit assembly.

(c) Measure the resistance according to the value(s) in the table below.

Standard resistance:





If the resistance value is not as specified, replace the transmission control switch.
