Removal

A760H AUTOMATIC TRANSMISSION: PATTERN SELECT SWITCH: REMOVAL

1. REMOVE FRONT DOOR SCUFF PLATE LH Removal

2. REMOVE FRONT DOOR OPENING TRIM COVER LH Removal

3. REMOVE SIDE INSTRUMENT PANEL LH Removal

4. REMOVE LOWER INSTRUMENT PANEL FINISH PANEL SUB-ASSEMBLY Removal

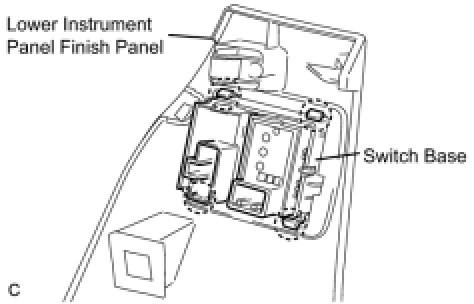

5. REMOVE SWITCH BASE

(a) Disengage the 4 claws, and remove the switch base from the lower instrument panel finish panel.

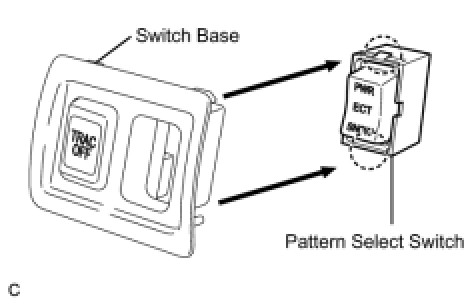

6. REMOVE NO. 1 PATTERN SELECT SWITCH ASSEMBLY

(a) Disengage the 2 claws, and remove the pattern select switch from the switch base.
