Canada - Drivetrain - Driveshaft Assembly Replacement Info.

Bulletin
2389

Issue Date
March 19, 2007

Title
DRIVESHAFT ASSEMBLY REPLACEMENT

Component
DRIVELINE

Models
'90 - '07 Lexus

INTRODUCTION:

The purpose of this bulletin is to provide information regarding anti-corrosion grease that is present on replacement driveshaft assemblies. It is important to remove this grease prior to installing the hub nut to prevent overtightening.

APPLICABLE VEHICLES:
- All '90 - '07 model year Toyota vehicles.

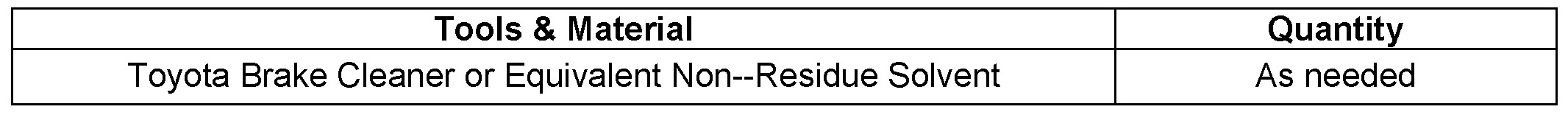

REQUIRED TOOLS & MATERIAL:

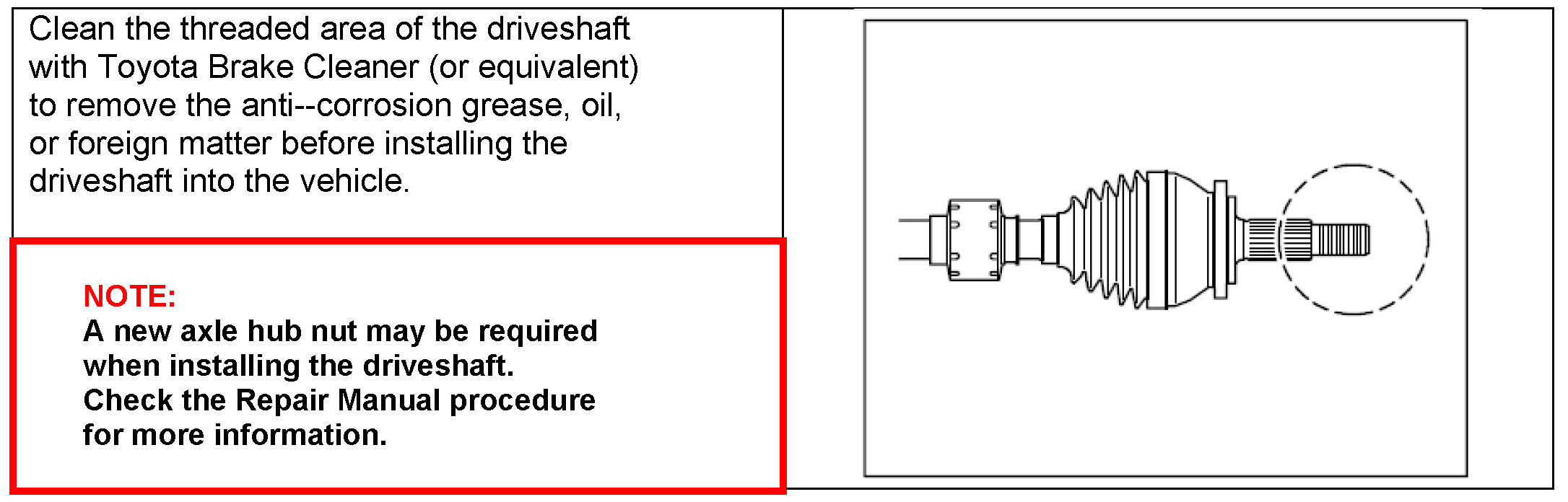

REPAIR PROCEDURE:

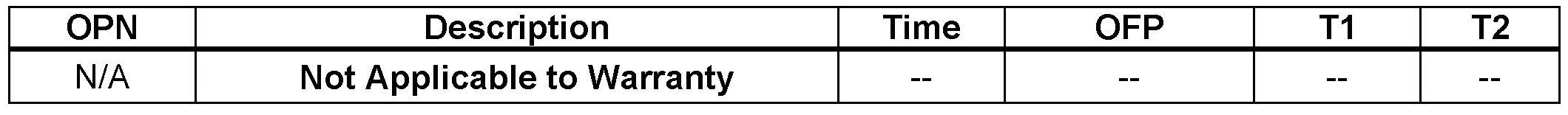

WARRANTY INFORMATION:
