Replacement

AXLE: REAR AXLE HUB BOLT: REPLACEMENT

1. REMOVE REAR WHEEL

2. SEPARATE REAR DISC BRAKE CALIPER ASSEMBLY Removal

3. REMOVE REAR DISC Disassembly

4. REMOVE REAR AXLE HUB BOLT

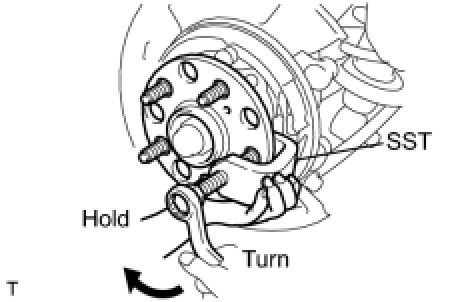

(a) Using SST, remove the rear axle hub bolt.





SST : 09628-10011

NOTICE:
Do not damage the threads of the hub bolt.

5. INSTALL REAR AXLE HUB BOLT

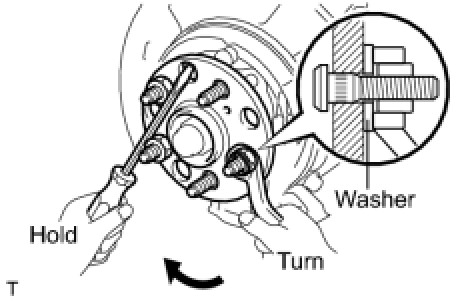

(a) Install a washer and nut to a new bolt as shown in the illustration.





(b) Using a screwdriver or equivalent to hold the rear axle hub, install the rear axle hub bolt by tightening the nut.

NOTICE:
Do not damage the threads of the hub bolt.

6. INSTALL REAR DISC Reassembly

7. ADJUST PARKING BRAKE SHOE CLEARANCE Adjustments

8. INSTALL REAR WHEEL

Torque : 103 Nm (1,050 kgf-cm, 76 ft-lbf)
