Removal

TIRE AND WHEEL: TIRE PRESSURE WARNING ECU: REMOVAL

1. REMOVE RADIO RECEIVER ASSEMBLY

HINT
Refer to the instructions for removal of the radio receiver assembly Removal.

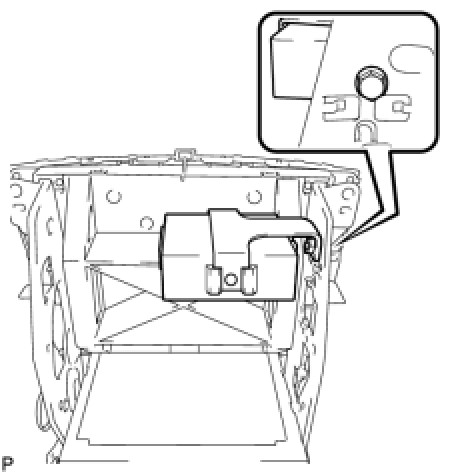

2. REMOVE TIRE PRESSURE WARNING ECU AND RECEIVER

(a) Disconnect the connector.

(b) Remove the bolt and the tire pressure warning ECU and receiver.
