Removal

SUSPENSION: FRONT UPPER SUSPENSION ARM: REMOVAL

1. REMOVE FRONT SHOCK ABSORBER WITH COIL SPRING (for 2WD) Removal

2. REMOVE FRONT SHOCK ABSORBER WITH COIL SPRING (for 4WD) Removal

3. REMOVE FRONT UPPER SUSPENSION ARM

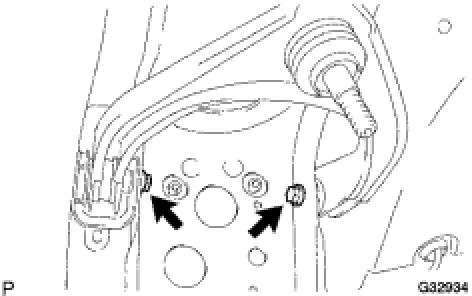

(a) Remove the 2 bolts and front upper suspension arm.
