Removal

ENGINE IMMOBILIZER: ID CODE BOX: REMOVAL

1. REMOVE INSTRUMENT PANEL SAFETY PAD ASSEMBLY

Removal

2. REMOVE AIR CONDITIONER UNIT ASSEMBLY

Removal

3. REMOVE ID CODE BOX (IMMOBILIZER CODE ECU)

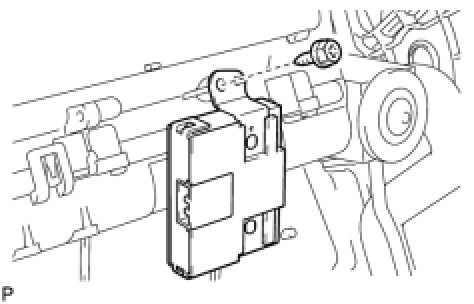

(a) Remove the screw and the ID code box (immobilizer code ECU).
