Seat Belt Warning System (w/o Occupant Classification System)
Seat Belt Warning System (w/o Occupant Classification System)

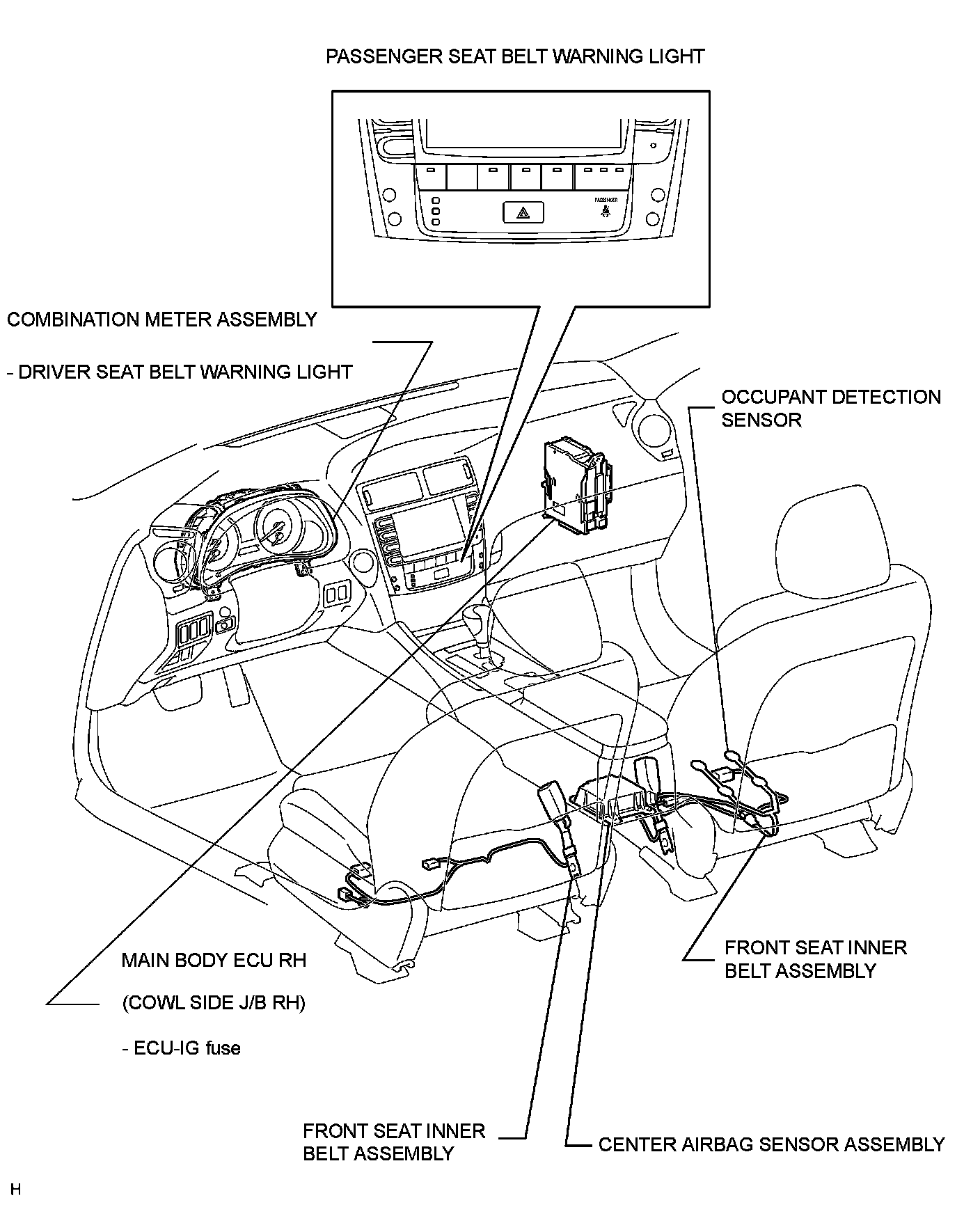

SEAT BELT: SEAT BELT WARNING SYSTEM (w/o Occupant Classification System): PARTS LOCATION
