Removal

LIGHTING: HEIGHT CONTROL SENSOR: REMOVAL

1. REMOVE FRONT HEIGHT CONTROL SENSOR SUB-ASSEMBLY (for 2WD)

(a) Disconnect the connector.

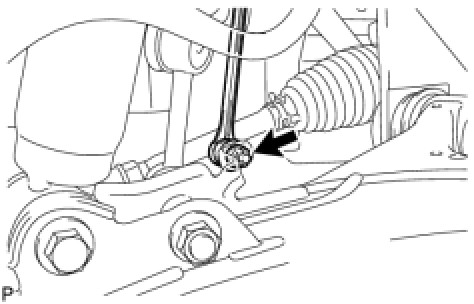

(b) Remove the nut.





(c) Remove the 2 bolts and front height control sensor sub-assembly.





2. REMOVE FRONT HEIGHT CONTROL SENSOR SUB-ASSEMBLY (for 4WD)

(a) Disconnect the connector.

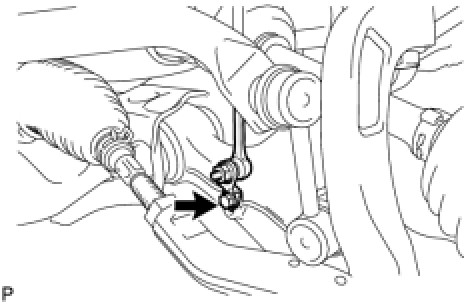

(b) Remove the bolt.

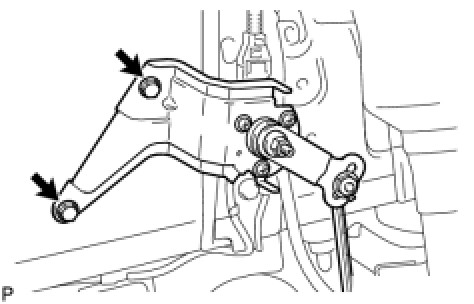

(c) Remove the 2 bolts and front height control sensor sub-assembly.





3. REMOVE REAR HEIGHT CONTROL SENSOR SUB-ASSEMBLY

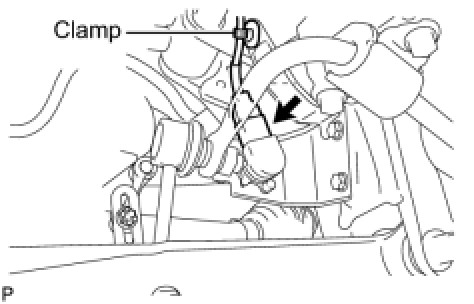

(a) Disengage the clamp and disconnect the connector.

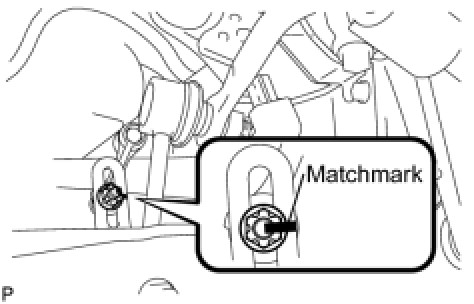

(b) Put matchmarks on the rear height control sensor link and bracket.

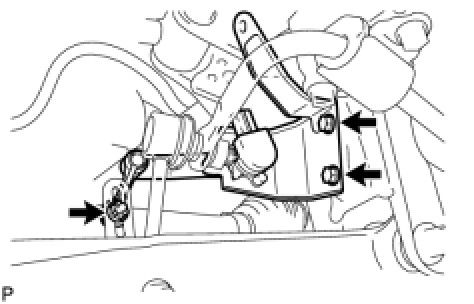

(c) Remove the 2 bolts, nut and rear height control sensor sub-assembly.
