Removal

AIR CONDITIONING: SMOG VENTILATION SENSOR: REMOVAL

1. REMOVE COOL AIR INTAKE DUCT SEAL Removal

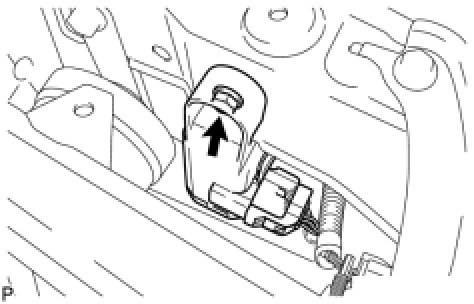

2. REMOVE SMOG VENTILATION SENSOR

(a) Disconnect the connector.





(b) Remove the bolt and smog ventilation sensor.
