Removal

AIR CONDITIONING: AMBIENT TEMPERATURE SENSOR: REMOVAL

1. REMOVE COOL AIR INTAKE DUCT SEAL Removal

2. REMOVE FRONT BUMPER ASSEMBLY Removal

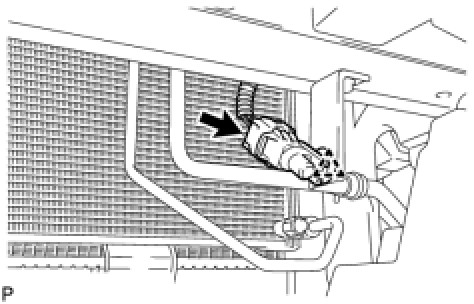

3. REMOVE AMBIENT TEMPERATURE SENSOR

(a) Disconnect the connector and detach the clamp.





(b) Remove the ambient temperature sensor.
