Home >> Lexus >> 2011 >> IS 250 AWD V6-2.5L (4GR-FSE) >> Repair and Diagnosis >> Sensors and Switches >> Sensors and Switches - Brakes and Traction Control >> Yaw Rate Sensor >> Service and Repair >> Components

Components

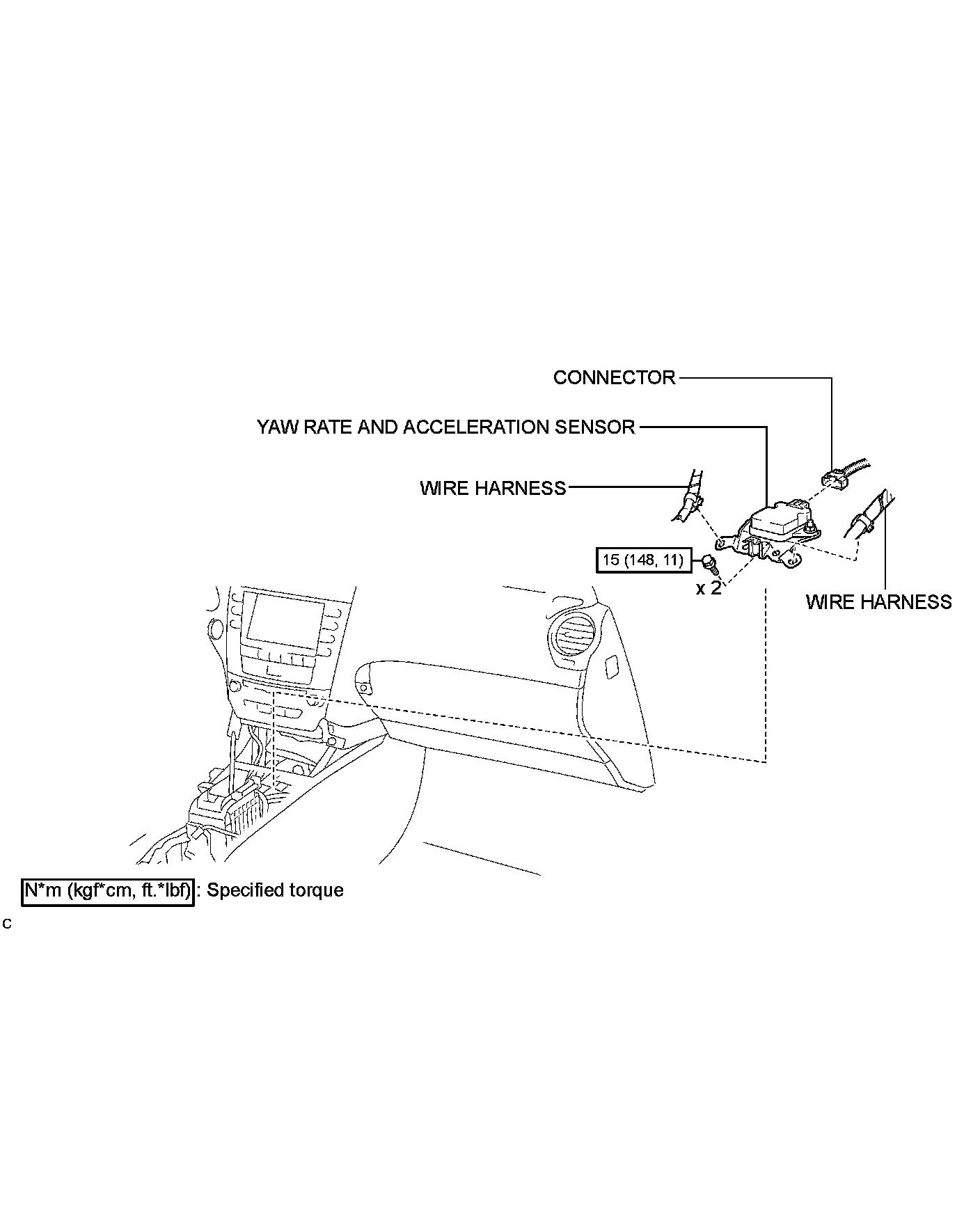

BRAKE CONTROL: YAW RATE AND ACCELERATION SENSOR: COMPONENTS
