Removal

BRAKE CONTROL: REAR SPEED SENSOR: REMOVAL

HINT
* Use the same procedures for the RH side and LH side.
* The procedures listed below are for the LH side.

1. REMOVE REAR WHEEL

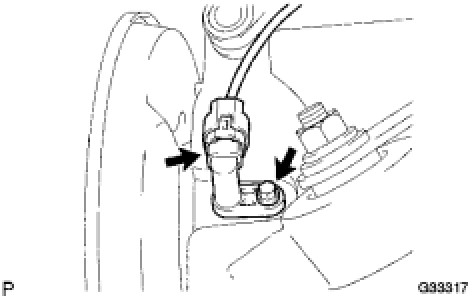

2. REMOVE REAR SPEED SENSOR

(a) Disconnect the rear speed sensor connector.





(b) Remove the bolt and rear speed sensor.

NOTICE:
Prevent foreign matter from attaching to the sensor tip.
