Removal

BRAKE CONTROL: FRONT SPEED SENSOR (for 4WD): REMOVAL

HINT
* Use the same procedures for the RH side and LH side.
* The procedures listed below are for the LH side.

1. REMOVE FRONT WHEEL

2. REMOVE FRONT SPEED SENSOR

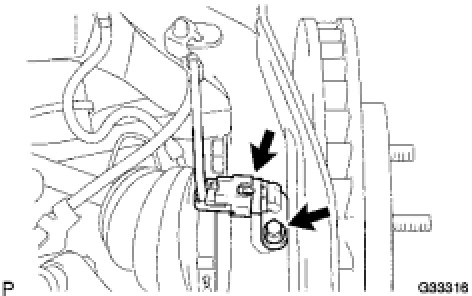

(a) Disconnect the front speed sensor connector.

(b) Remove the bolt and front speed sensor.





NOTICE:
Prevent foreign matter from attaching to the sensor tip.
