Front Power Seat Control System (w/o Seat Position Memory System)
Front Power Seat Control System (w/o Seat Position Memory System)

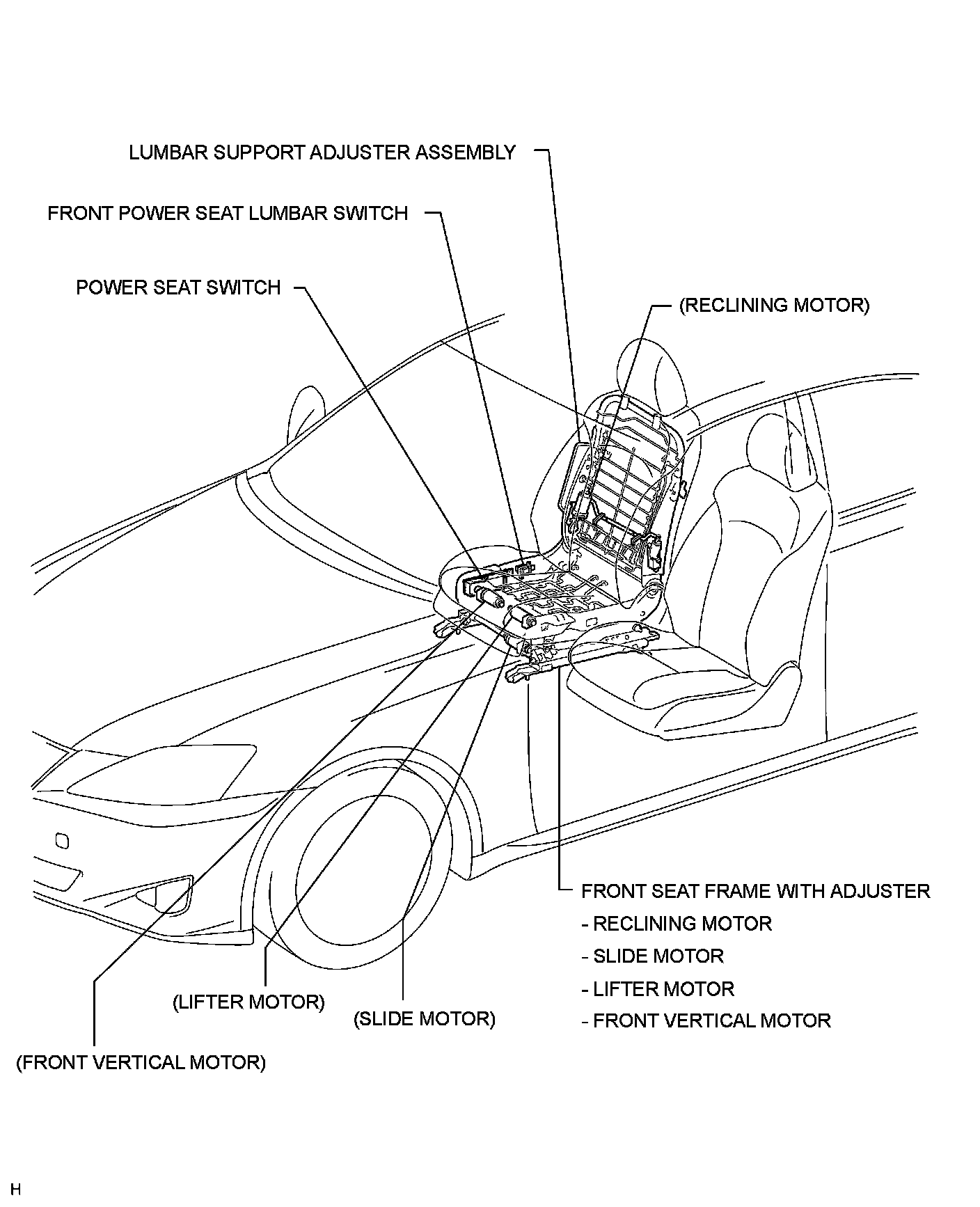

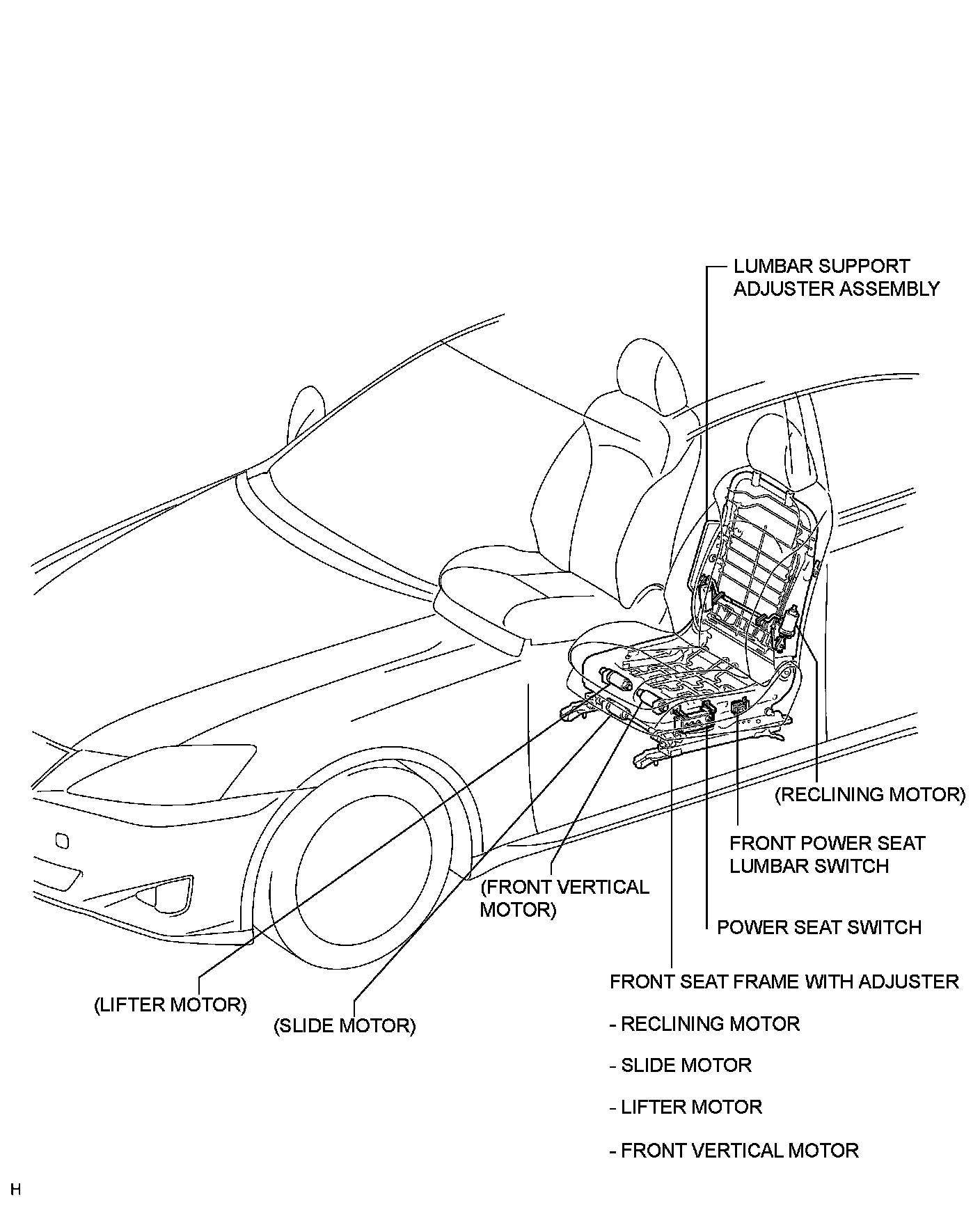

SEAT: FRONT POWER SEAT CONTROL SYSTEM (w/o Seat Position Memory System): PARTS LOCATION
