Power Mirror Switch: Testing and Inspection

MIRROR: OUTER MIRROR SWITCH: INSPECTION

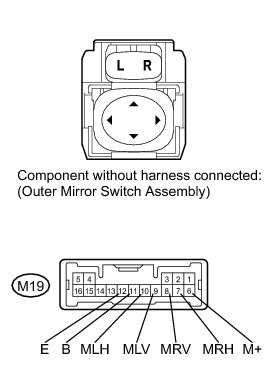

1. INSPECT OUTER MIRROR SWITCH ASSEMBLY (w/o Retract Mirror)

(a) Check the switch functions.





(1) For the L position of the mirror select switch:

Measure the resistance according to the value(s) in the table below.

Standard Resistance:





If the result is not as specified, replace the outer mirror switch assembly.

(2) For the R position of the mirror select switch:

Measure the resistance according to the value(s) in the table below.

Standard Resistance:





If the result is not as specified, replace the outer mirror switch assembly.

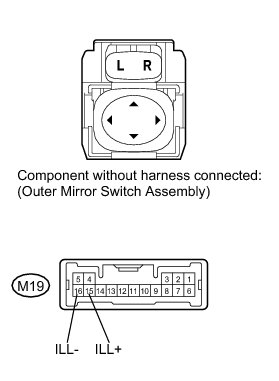

(b) Check that the LED illuminates.





(1) Apply battery voltage to the outer mirror switch assembly and check that the LED illuminates.

Standard:





If the result is not as specified, replace the outer mirror switch assembly.

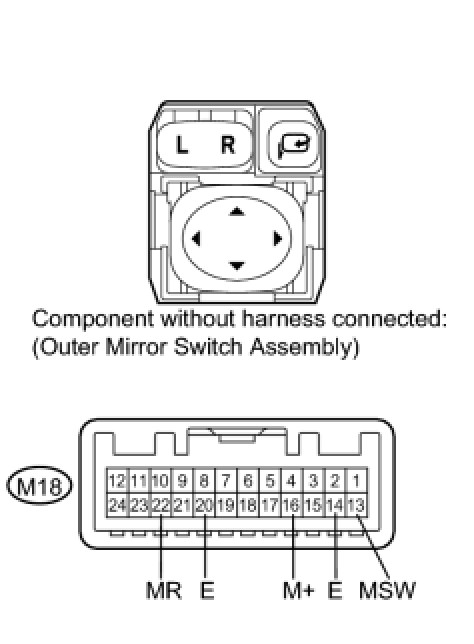

2. INSPECT OUTER MIRROR SWITCH ASSEMBLY (w/ Retract Mirror)

(a) Inspect the outer mirror switch.





(1) Measure the resistance according to the value(s) in the table below when the switch is operated.

Resistance:





If the result is not as specified, replace the switch assembly.
