Removal

MIRROR: OUTER MIRROR SWITCH: REMOVAL

1. REMOVE POWER WINDOW REGULATOR MASTER SWITCH ASSEMBLY WITH FRONT DOOR ARMREST BASE PANEL Disassembly

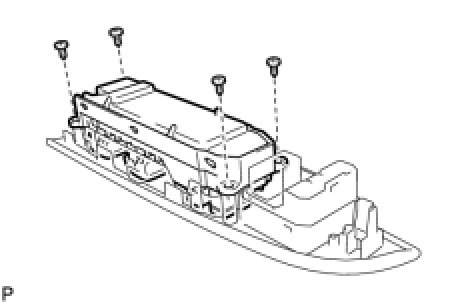

2. REMOVE POWER WINDOW REGULATOR MASTER SWITCH ASSEMBLY

(a) Remove the 4 screws and power window regulator master switch assembly.

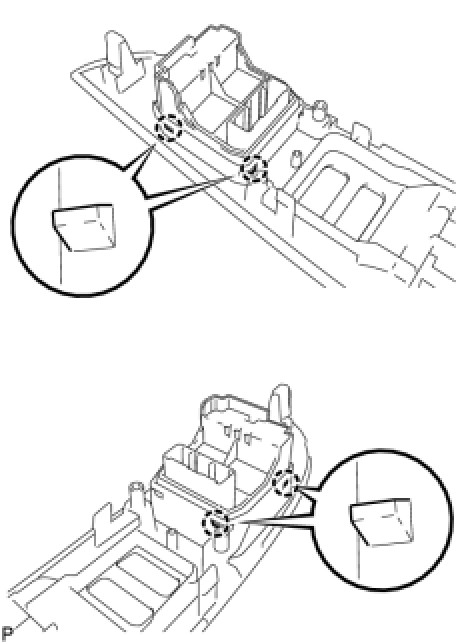

3. REMOVE OUTER MIRROR SWITCH ASSEMBLY (for Standard)

(a) Disengage the 4 claws and remove the outer mirror switch assembly.

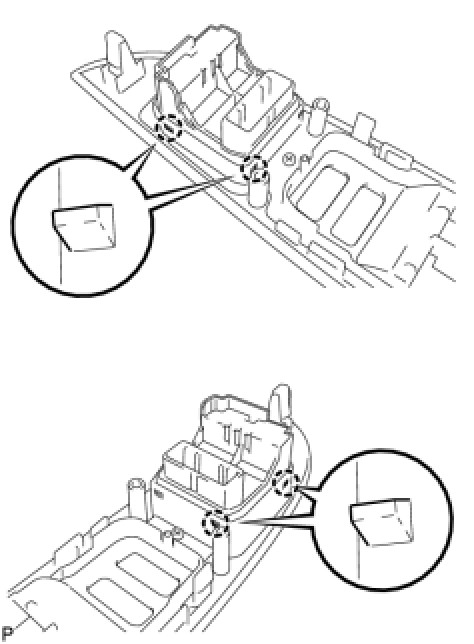

4. REMOVE OUTER MIRROR SWITCH ASSEMBLY (for Wood Panel)

(a) Disengage the 4 claws and remove the outer mirror switch assembly.
