Entry Lock and Unlock Switch





DOOR LOCK: ENTRY LOCK AND UNLOCK SWITCH: INSPECTION

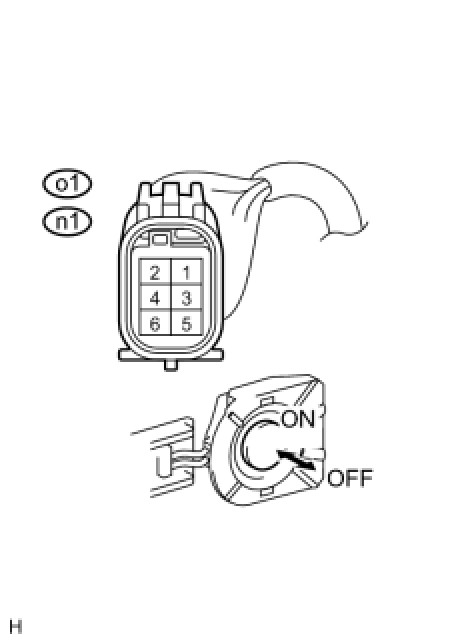

1. INSPECT ENTRY LOCK AND UNLOCK SWITCH

(a) Remove the outside handle.





(b) Disconnect the connectors.

(c) Measure the resistance according to the value(s) in the table below.

Standard resistance:
