Installation

ENGINE HOOD / DOOR: FUEL LID OPENER SWITCH: INSTALLATION

1. INSTALL FUEL LID OPENER SWITCH

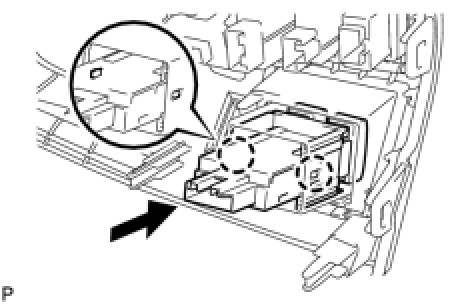

(a) Attach the 2 claws and install the fuel lid opener switch.





2. INSTALL LOWER INSTRUMENT PANEL FINISH PANEL SUB-ASSEMBLY Installation

3. INSTALL SIDE INSTRUMENT PANEL LH Installation

4. INSTALL FRONT DOOR OPENING TRIM COVER LH Installation

5. INSTALL FRONT DOOR SCUFF PLATE LH (w/o Illumination) Installation

6. INSTALL FRONT DOOR SCUFF PLATE LH (w/ Illumination) Installation
