Headlamp Relay: Testing and Inspection

LIGHTING: HEADLIGHT RELAY: ON-VEHICLE INSPECTION

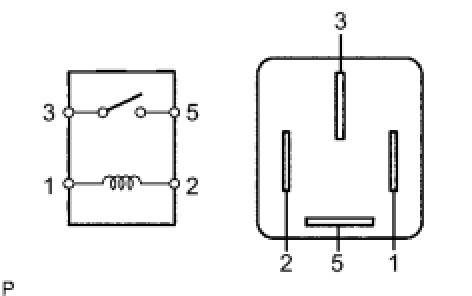

1. INSPECT HEADLIGHT RELAY (Marking: HEAD LP)

(a) Remove the headlight relay from the engine room R/B No. 1.





(b) Measure the resistance according to the value(s) in the table below.

Standard resistance:





If the result is not as specified, replace the relay.
