Brake Lamp Relay: Testing and Inspection

LIGHTING: STOP LIGHT CONTROL RELAY: INSPECTION

1. INSPECT STOP LIGHT CONTROL RELAY

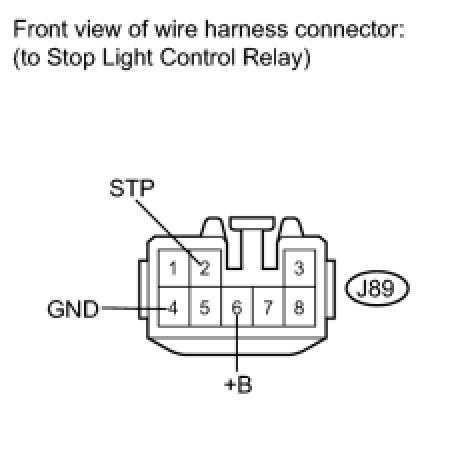

(a) Disconnect the J89 stop light control relay connector.





(b) Measure the voltage according to the value(s) in the table below.

Standard voltage:





If the result is not as specified, there is a malfunction on the wire harness side.

(c) Measure the resistance according to the value(s) in the table below.

Standard resistance:





If the result is not as specified, there is a malfunction on the wire harness side.

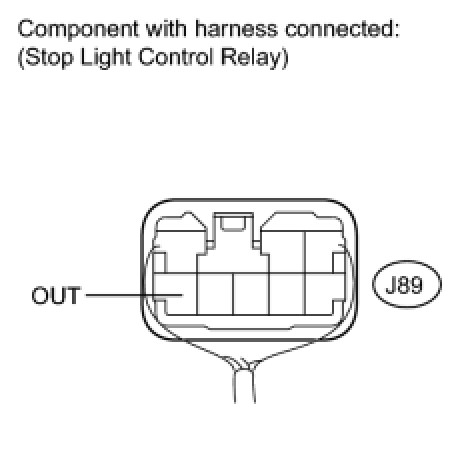

(d) Reconnect the J89 stop light control relay connector.





(e) Measure the voltage according to the value(s) in the table below.

Standard voltage:





If the result is not as specified, replace the stop light control relay.
