Removal

4GR-FSE FUEL: FUEL PUMP RESISTOR: REMOVAL

1. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL

2. REMOVE COOL AIR INTAKE DUCT SEAL Removal

3. REMOVE ENGINE ROOM RH SIDE COVER Removal

4. REMOVE FUEL PUMP RESISTOR

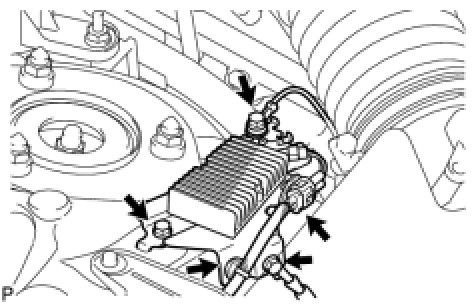

(a) Disconnect the connector and clamp from the fuel pump resistor.





(b) Remove the 3 bolts and fuel pump resistor, and disconnect the ground wires.
