Cold Start Injector: Testing and Inspection





4GR-FSE FUEL: COLD START INJECTOR: INSPECTION

1. INSPECT COLD START INJECTOR

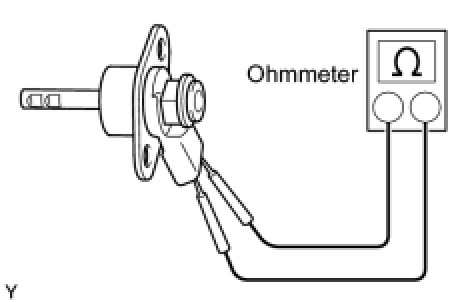

(a) Check the cold start injector resistance.





Standard resistance:

1.5 to 6.5 Ohms at 20°C (68°F)
