Removal

4GR-FSE EMISSION CONTROL: CANISTER: REMOVAL

1. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL

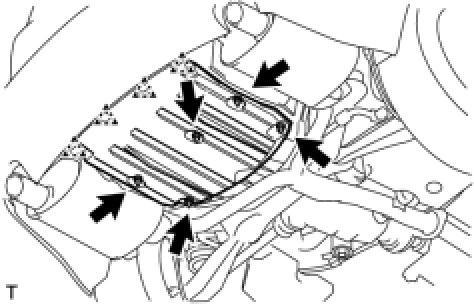

2. REMOVE FLOOR UNDER COVER

(a) Remove the 5 nuts, 4 clips and floor under cover.





3. REMOVE CHARCOAL CANISTER ASSEMBLY

(a) Disconnect the wire harness from the 2 clamps.

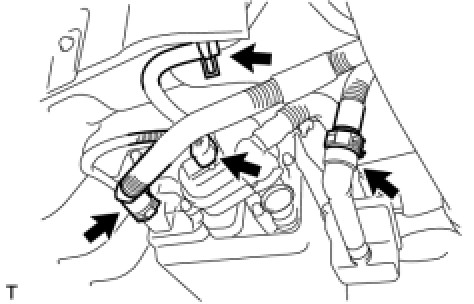

(b) Disconnect the 2 quick connectors, hose and connector.

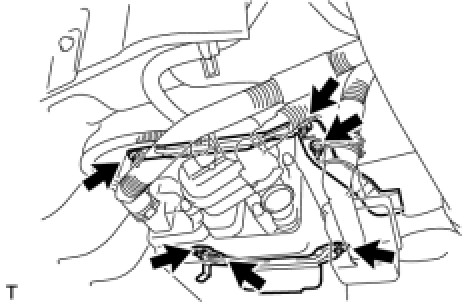

(c) Remove the 4 nuts, 2 spacers and charcoal canister assembly.
