Disposal

TIRE AND WHEEL: TIRE PRESSURE WARNING VALVE AND TRANSMITTER: DISPOSAL

HINT
The tire pressure warning valve and transmitter is powered by a lithium battery. When disposing of the tire pressure warning valve and transmitter, remove the battery and dispose of it correctly.

1. DISPOSE OF TIRE PRESSURE WARNING VALVE AND TRANSMITTER

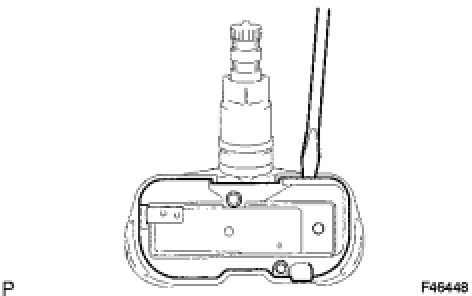

(a) Using a screwdriver, pry off the back cover.

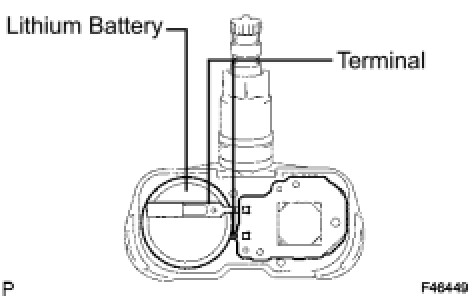

(b) The battery and base board covered with silicone resin are exposed. While taking out the battery, disconnect the 2 terminals that connect the battery and the base board.
